Part Number: M74HC24HF1R
Description: The M54/74HC245, HC640 and HC643 utilise silicon gate C2MOStechnology to achive operating speeds equiv...
- Table of contents:
M74HC24HF1R
-
Suppliers
DataSheet
General Description
M74HC24HF1R General Description
The M54/74HC245, HC640 and HC643 utilise silicon gate C2MOStechnology to achive operating speeds equivalent to LSTTL devices. Along with the low power dissipation and high noise immunity of standards C2MOS integrated circuit, it possesses the capability to drive 15 LSTTL loads. These IC's are intended for two-way asynchronous communication between data buses, and the direction of data trasmission is determined by DIR input.
The enable input (G) can be used to disable All input are equipped with protection circuits against static discharge and transient discharge and transient excess voltage. IT IS PROHIBITED TO APPLY A SIGNAL TO A BUS TERMINAL WHEN IT IS IN OUTPUT MODE AND WHEN A BUS THERMINAL IS FLOATING (HIGH IMPEDANCE STATE), IT IS REQUESTED TO FIX THE INPUT LEVEL BY MEANS OF EXTERNAL PULL DOWN OR PULL UP RESISTOR.
M74HC24HF1R Maximum Ratings
|
Parameter |
Value |
SYMBOL |
UNIT |
|
Supply Voltage |
-0.5 to +7 |
VCC |
V |
|
DC Input Voltage |
-0.5 to VCC + 0.5 |
VI |
V |
|
DC Output Voltage |
-0.5 to VCC + 0.5 |
VC |
V |
|
DC Input Diode Current |
± 20 |
IIK |
mA |
|
DC Output Diode Currente |
± 20 |
Tj |
mA |
|
DC Output Source Sink Current Per Output Pin |
± 25 |
Tstg |
mA |
|
DC VCC or Ground Current |
± 50 |
TSTG |
oC |
|
Power Dissipation |
500 (*) |
PD |
mW |
|
Storage Temperature |
-65 to +150 |
TSTG |
oC |
|
Lead Temperature (10 sec) |
300 |
VEBO |
°C |
AbsoluteMaximumRatings are those values beyond whichdamage tothe device may occur. Functional operation under these condition isnotimplied.(*) 500 mW: @ 65 oC derate to 300mWby 10mW/oC: 65 oC to85oC
M74HC24HF1R Features
.HIGH SPEED tPD = 10 ns (TYP.) at VCC = 5V
.LOWPOWER DISSIPATION ICC = 4 mA (MAX.) at TA = 25 oC
.HIGH NOISE IMMUNITY VNIH= VINL= 28%VCC (MIN.)
.OUTPUT DRIVE CAPABILITY15 LSTTL LOADS
.SYMMETRICAL OUTPUT IMPEDANCE |IOH| = IOL = 6 mA (MIN)
.BALANCEDPROPAGATION DELAYS tPLH = tPHL
.WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V
.PIN AND FUNCTION COMPATIBLE WITH 54/74LS245/640/643
.LOWPOWER DISSIPATION ICC = 4 mA (MAX.) at TA = 25 oC
.HIGH NOISE IMMUNITY VNIH= VINL= 28%VCC (MIN.)
.OUTPUT DRIVE CAPABILITY15 LSTTL LOADS
.SYMMETRICAL OUTPUT IMPEDANCE |IOH| = IOL = 6 mA (MIN)
.BALANCEDPROPAGATION DELAYS tPLH = tPHL
.WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V
.PIN AND FUNCTION COMPATIBLE WITH 54/74LS245/640/643

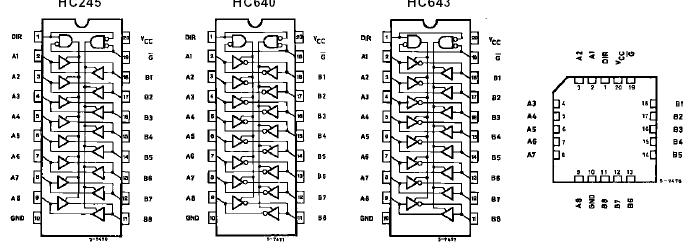

M74HC24HF1R Connection Diagram
