Part Number: M74HCT125
Description: The M74HCT125 is an high speed CMOS QUAD BUFFER (3-STATE) fabricated with silicon gate C2MO...
- Table of contents:
M74HCT125
-
Suppliers
DataSheet
General Description
M74HCT125 General Description
The M74HCT125 is an high speed CMOS QUAD BUFFER (3-STATE) fabricated with silicon gate C2MOS technology.
The device requires the 3-STATE control input G to be set high to place the output in to the high impedance state.
The M74HCT125 is designed to directly interface HSC2MOS systems with TTL and NMOS components.
All inputs are equipped with protection circuits against static discharge and transient excess voltage.
M74HCT125 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VCC | Supply Voltage | -0.5 to +7 | V |
| VI | DC Input Voltage | -0.5 to VCC + 0.5 | V |
| VO | DC Output Voltage | -0.5 to VCC + 0.5 | V |
| IIK | DC Input Diode Current | ± 20 | mA |
| IOK | DC Output Diode Current | ± 20 | mA |
| IO | DC Output Current | ± 25 | mA |
| ICC or IGND | DC VCC or Ground Current | ± 50 | mA |
| PD | Power Dissipation | 500(*) | mW |
| Tstg | Storage Temperature | -65 to +150 | °C |
| TL | Lead Temperature (10 sec) | 300 | °C |
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied
(*) 500mW at 65 °C; derate to 300mW by 10mW/°C from 65°C to 85°C
M74HCT125 Features
`HIGH SPEED:
tPD = 13ns (TYP.) at VCC = 4.5V
`LOW POWER DISSIPATION:
ICC = 1mA(MAX.) at TA=25°C
`COMPATIBLE WITH TTL OUTPUTS :
VIH = 2V (MIN.) VIL = 0.8V (MAX)
`BALANCED PROPAGATION DELAYS:
tPLH tPHL
`SYMMETRICAL OUTPUT IMPEDANCE:
|IOH| = IOL = 4mA (MIN)
`PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 125
tPD = 13ns (TYP.) at VCC = 4.5V
`LOW POWER DISSIPATION:
ICC = 1mA(MAX.) at TA=25°C
`COMPATIBLE WITH TTL OUTPUTS :
VIH = 2V (MIN.) VIL = 0.8V (MAX)
`BALANCED PROPAGATION DELAYS:
tPLH tPHL
`SYMMETRICAL OUTPUT IMPEDANCE:
|IOH| = IOL = 4mA (MIN)
`PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 125

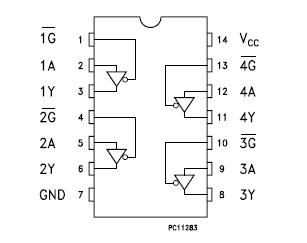

M74HCT125 Connection Diagram
M74HCT125
