General Description
M74HCT4051 General Description
The M74HCT4051 is a single eight-channel analog MULTIPLEXER/DEMULTIPLEXER fabricated with silicon gate C2MOS technology and it is pin to pin compatible with the equivalent metal gate CMOS4000B series.
It contains 8 bidirectional and digitally controlled analog switches.
A built-in level shifting is included to allow an input range up to ±6V (peak) for an analog signal with digital control signal of 0 to 6V. VEE supply pin is provided for analog input signals. It has an inhibit (INH) input terminal to disable all the switches when high, compatible with TTL output level. For operation as a digital multiplexer/demultiplexer, VEE is connected to GND. A, B and C control inputs select one channel out of eight channels; they are compatible with TTL output level.
All inputs are equipped with protection circuits against static discharge and transient excess voltage.
M74HCT4051 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VCC | Supply Voltage | -0.5 to +7 | V |
| VCC - VEE | Supply Voltage | -0.5 to +13 | V |
| VI | Control Input Voltage | -0.5 to VCC + 0.5 | V |
| VI/O | Switch I/O Voltage | VEE -0.5 to VCC + 0.5 | V |
| ICK | Control Input Diode Current | ± 20 | mA |
| IOK | DC Output Diode Current | ± 20 | mA |
| IT | Switch Through Current | ± 25 | mA |
| ICC or IGND | DC VCC or Ground Current | ± 50 | mA |
| PD | Power Dissipation | 500(*) | mW |
| Tstg | Storage Temperature | -65 to +150 | °C |
| TL | Lead Temperature (10 sec) | 300 | °C |
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied
(*) 500mW at 65 °C; derate to 300mW by 10mW/°C from 65°C to 85°C
M74HCT4051 Features
`LOW POWER DISSIPATION:
ICC = 4mA (MAX.) at TA=25°C
`LOGIC LEVEL TRANSLATION TO ENABLE
TTL LOGIC SIGNAL TO COMMUNICATE
WITH ±5V ANALOG SIGNAL
`LOW "ON" RESISTANCE:
70 TYP. (VCC - VEE = 4.5V)
50 TYP. (VCC - VEE = 9V)
` WIDE ANALOG INPUT VOLTAGE RANGE: ±6V
`FAST SWITCHING:
tpd = 13ns (TYP.) at TA = 25 °C
`LOW CROSSTALK BETWEEN SWITCHES
`HIGH ON/OFF OUTPUT VOLTAGE RATIO
` WIDE OPERATING SUPPLY VOLTAGE
RANGE (VCC - VEE) = 2V TO 12V
`LOW SINE WAVE DISTORTION:
0.02% at VCC - VEE = 9V
`COMPATIBLE WITH TTL OUTPUTS:
VIH = 2V(MIN.) VIL = 0.8V (MAX.)
`PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 4051
ICC = 4mA (MAX.) at TA=25°C
`LOGIC LEVEL TRANSLATION TO ENABLE
TTL LOGIC SIGNAL TO COMMUNICATE
WITH ±5V ANALOG SIGNAL
`LOW "ON" RESISTANCE:
70 TYP. (VCC - VEE = 4.5V)
50 TYP. (VCC - VEE = 9V)
` WIDE ANALOG INPUT VOLTAGE RANGE: ±6V
`FAST SWITCHING:
tpd = 13ns (TYP.) at TA = 25 °C
`LOW CROSSTALK BETWEEN SWITCHES
`HIGH ON/OFF OUTPUT VOLTAGE RATIO
` WIDE OPERATING SUPPLY VOLTAGE
RANGE (VCC - VEE) = 2V TO 12V
`LOW SINE WAVE DISTORTION:
0.02% at VCC - VEE = 9V
`COMPATIBLE WITH TTL OUTPUTS:
VIH = 2V(MIN.) VIL = 0.8V (MAX.)
`PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 4051

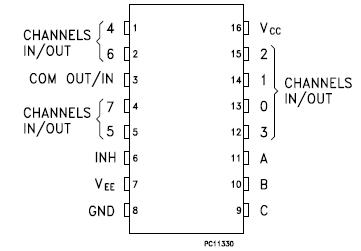

M74HCT4051 Connection Diagram
