General Description
MA02205AF Maximum Ratings
| Rating | Symbol | Value | Unit |
| DC Supply Voltage (Pins 1, 12, 16) | VDD | 5.5 | Vdc |
| RF Input Power | PIN | 3 | mW |
| Junction Temperature | TJ | 150 | |
| Storage Temperature Range | TSTG | -40 to +150 |
MA02205AF Features
• Single Positive Supply
• 54% Power Added Efficiency
• 100% Duty Cycle
• 1.2:1 Input VSWR in both On and Off states
• 1800 to 2000 MHz Operation
• 16 Pin TSSOP Plastic Package
• Accommodates Battery Charging Conditions up to 5.5 Volts
• Self-Aligned MSAG®-Lite MESFET Process
MA02205AF Typical Application
DECT PCS Personal Wireless Telephony (PWT) Cordless PBX Radio/Wireless Local Loop (RLL/WLL)

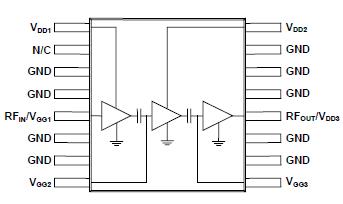

MA02205AF Connection Diagram
