SeekIC No. : 003438458 Detail

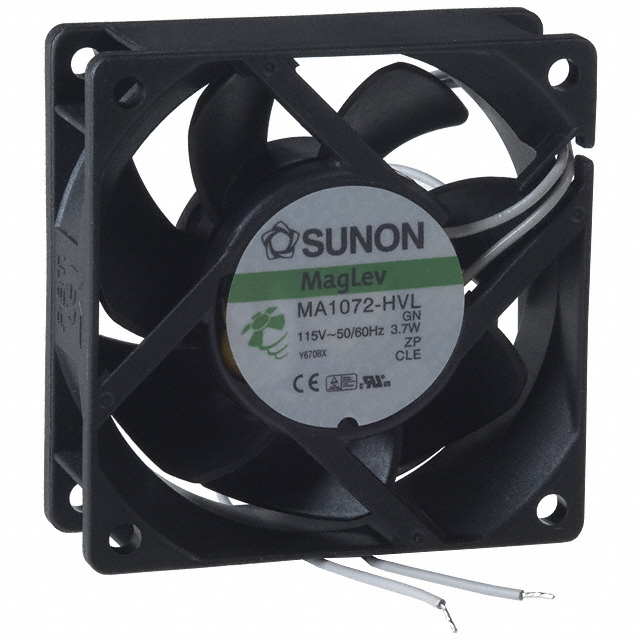

MA1072-HVL.GN: FAN 115VAC 70X25MM 28/29CFM

MA1072-HVL.GN Data Sheet

US $ 7.93~7.93 / Piece | Get Latest Price

Part Number:: MA1072-HVL.GN
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~200

Unit Price
$7.93

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2026/3/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MA100 evaluate
US $1.67 - 2 / Piece

AC Power Entry Modules PWR INTRCONNECT ASSY 8.5" Wire leads
MA100BF103A evaluate
US $3.07 - 3.07 / Piece

Industrial Temperature Sensors 10kOhms see data sheet for tolerance
MA100BF103B evaluate
US $2.18 - 2.18 / Piece

Industrial Temperature Sensors 10kOhms see data sheet for tolerance

Product Details

Quick Details

Series:	MA	Manufacturer:	Sunon Fans
Air Flow:	29.0 CFM (0.821m³/min)	Bearing Type:	Vapo-Bearing?
Fan Type:	Tubeaxial	Features:	-
Noise:	31 dB(A)	Breakdown Voltage :	25.4 V
Power (Watts):	3.7W	RPM:	3900 RPM
Size / Dimension:	Square - 70mm L x 70mm H x 25mm W	Static Pressure:	0.180 in H2O (45.0 Pa)
Termination:	2 Wire Leads	Voltage - Rated:	115VAC

Description

Fan Type: Tubeaxial
Features: -
Termination: 2 Wire Leads
Voltage - Rated: 115VAC
Manufacturer: Sunon Fans
Static Pressure: 0.180 in H2O (45.0 Pa)
Series: MA
Bearing Type: Vapo-Bearing?
Noise: 31 dB(A)
Air Flow: 29.0 CFM (0.821m³/min)
Power (Watts): 3.7W
RPM: 3900 RPM
Size / Dimension: Square - 70mm L x 70mm H x 25mm W
Weight: 0.2 lb (90.72g)

Parameters:

Technical/Catalog Information	MA1072-HVL.GN
Vendor	Sunon Fans
Category	Fans, Thermal Management
Air Flow	29.0 CFM (0.82m³/min)
Bearing Type	Vapo-Bearing?
Fan Type	Tubeaxial
Noise	31 dB(A)
Power (Watts)	3.7W
Size / Dimension	Square - 70mm L x 70mm H x 25mm W
Static Pressure	0.180 in H2O (45.0 Pa)
Termination	2 Wire Leads
Voltage Rating	115VAC
RPM	3900 RPM
Weight	0.190 lb (86.18g)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MA1072 HVL GN MA1072HVLGN 259 1431 ND 2591431ND 259-1431
