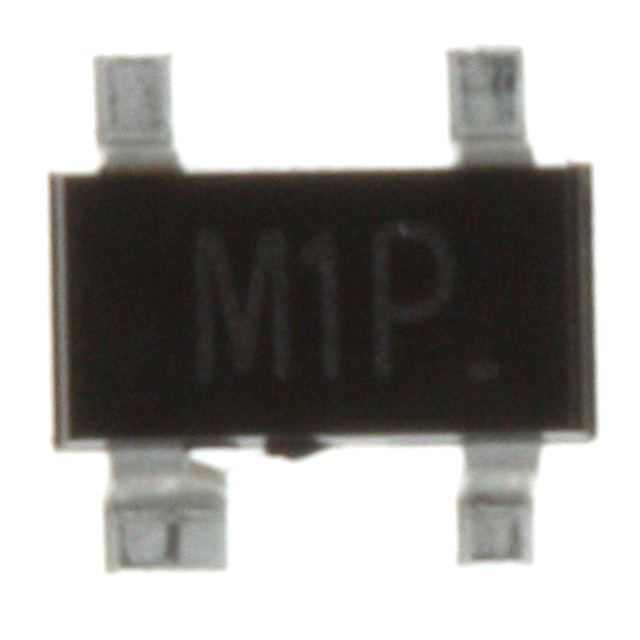

MA4X724 Product Image

MA4 Series Datasheet download

Five Points

Part Number: MA4X724











Urgent Purchase

MA4X724 Maximum Ratings

Parameter
Symbol
Rating
Unit
Reverse voltage (DC)
Peak reverse voltage
VR
VRM
30
30
V
V
Peak forward
current
Average forward
current
Non-repetitive peak
forward-surge-current *2		 Single
Double *1
Single
Double *1
Single
Double *1
IFM

IF(AV)

IFSM
300
225
200
150
1
0.75
mA

mA

A
Junction temperature
Storage temperature
Tj
Tstg
150
−55 to +150
°C
°C
Note) *1: Value per chip
*2: The peak-to-peak value in one cycle of 50 Hz sine wave (non-repetitive)

MA4X724 Features

• Two isolated elements are contained in one package, allowing high-density mounting
• Two MA3X721 (MA721) is contained in one package (of a type in the same direction)
• IF(AV) = 200 mA rectification is possible
• Mini type 4-pin package
