Purchase MALM062H, In-stock MALM062H From SeekIC.
- Table of contents:

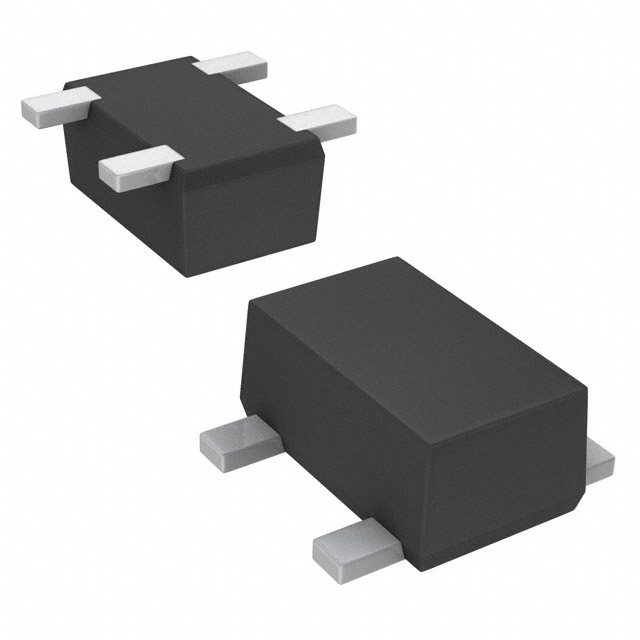

MALM062H
-
Suppliers
DataSheet
General Description
MALM062H Maximum Ratings
| Parameter | Symbol |
Rating |
Unit |
| Total power dissipation *1 | PD |
150 |
mW |
| Junction temperature | Tj |
150 |
|
| Storage temperature | Tstg |
-55 to +150 |
|
| Electrostatic discharge *2 | ESD |
±30 |
kV |
*2 : Test method: IEC61000-4-2 (C = 150 pF, R = 330 , Contact discharge: 10 times)
MALM062H Features
·Electrostatic discharge ESD: ±30 kV
·Four elements anode-common type
·Four elements anode-common type
MALM062H
PDF/DataSheet Download
- Datasheet: MALM062H
- File Size: 447378 KB
- Manufacturer: PANASONIC
- Click here to Download
