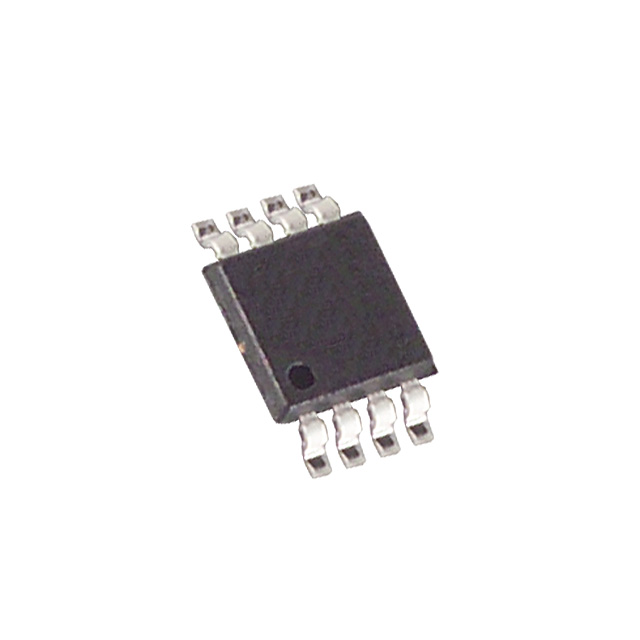

MFG:Maxim Integrated Products Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: Maxim Integrated Products
Descriptions: IC DRIVER SW MOSF HI SIDE 8UMAX
2500
1.96560
4914.00
| Technical/Catalog Information | MAX1614EUA-T |
| Vendor | Maxim Integrated Products |
| Category | Integrated Circuits (ICs) |
| Configuration | High-Side |
| Voltage - Supply | 5 V ~ 26 V |
| Current - Peak | - |
| Delay Time | - |
| Package / Case | 8-MSOP, Micro8?, 8-uMAX, 8-uSOP, |
| Packaging | Tape & Reel (TR) |
| Number of Outputs | 1 |
| Input Type | Non-Inverting |
| Number of Configurations | 1 |
| Operating Temperature | -40°C ~ 85°C |
| High Side Voltage - Max (Bootstrap) | - |
| Drawing Number | 175; 21-0036; UA; 8 |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MAX1614EUA T MAX1614EUAT |
MAX002
PDF/DataSheet Download
IC DVR MOSFET HI-SIDE NCH 8-UMAX
IC DVR MOSFET HI-SIDE NCH 8-UMAX
IC DRIVER SW MOSF HI SIDE 8UMAX
The MAX1614 drives high-side, N-channel power MOSFETs to provide battery power-switching functions in portable equipment. N-channel power MOSFETs typically have one-third the on-resistance of P-channel MOSFETs of similar size and cost. An internal micropower...
