Features: 1500MHz to 2500MHz RF Frequency Range
Meets Four-Carrier WCDMA 65dBc ACLR
+23.3dBm Typical OIP3
+51.5dBm Typical OIP2
45.7dBc Typical Sideband Suppression
-40dBm Typical LO Leakage
-173.2dBm/Hz Typical Output Noise, Eliminating the Need for an RF Output Filter
Broadband Baseband Input
DC-Coupled Input Provides for Direct Launch DAC Interface, Eliminating the Need for Costly I/Q Buffer AmplifiersApplicationSingle and Multicarrier WCDMA/UMTS Base Stations
Single and Multicarrier cdmaOne™ and cdma2000
Base Stations
Single and Multicarrier DCS 1800/PCS 1900 EDGE
Base Stations
PHS/PAS Base Stations
Predistortion Transmitters
Fixed Broadband Wireless Access
Wireless Local Loop
Private Mobile Radio
Military Systems
Microwave Links
Digital and Spread-Spectrum Communication

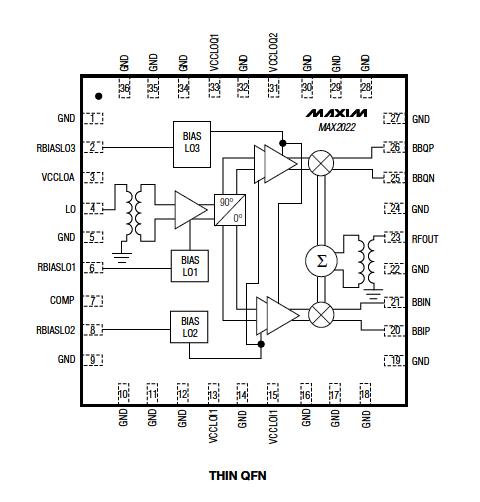

SystemsPinout
SpecificationsVCC_ to GND ........................................................-0.3V to +5.5V
COMP .............................................................................0 to VCC
BBIP, BBIN, BBQP, BBQN to GND ................-2.5V to (VCC + 0.3V)
LO, RFOUT to GND Maximum Current...................................50mA
Baseband Differential I/Q Input Power (Note A) .............+20dBm
LO Input Power...............................................................+10dBm
RBIASLO1 Maximum Current ...............................................10mA
RBIASLO2 Maximum Current ...............................................10mA
RBIASLO3 Maximum Current ...............................................10mA
JA (without air flow) .....................................................34°C/W
JA (2.5m/s air flow) .......................................................28°C/W
JC (junction to exposed paddle) ..................................8.5°C/W
Junction Temperature.....................................................+150°C
Storage Temperature Range .......................... 65°C to +150°C
Lead Temperature (soldering 10s, non-lead free)..........+245°C
Lead Temperature (soldering 10s, lead free) ................+260°C
DescriptionThe MAX2022 low-noise, high-linearity, direct upconversion quadrature modulator is designed for single and multicarrier 1800MHz to 2200MHz UMTS/WCDMA, cdma2000®, and DCS/PCS base-station applications. Direct upconversion architectures are advantageous since they significantly reduce transmitter cost, part count, and power consumption as compared to traditional IF-based double upconversion systems.
In addition to offering excellent linearity and noise performance, the MAX2022 also yields a high level of component integration. This device includes two matched passive mixers for modulating in-phase and quadrature signals, three LO mixer amplifier drivers, and an LO quadrature splitter. On-chip baluns are also integrated to allow for single-ended RF and LO connections. As an added feature, the baseband inputs have been matched to allow for direct interfacing to the transmit DAC, thereby eliminating the need for costly I/Q buffer amplifiers.
The MAX2022 operates from a single +5V supply. It is available in a compact 36-pin thin QFN package (6mmx 6mm) with an exposed paddle. Electrical performance is guaranteed over the extended -40°C to+85°C temperature range.
