Purchase MAX3042, In-stock MAX3042 From SeekIC.
Part Number: MAX3042
Description: The MAX3040MAX3045 is a family of 5V quad RS-485/RS-422 transmitters designed for digital data transmission over twiste...
- Table of contents:
MAX3042
-
Suppliers
DataSheet
General Description
MAX3042 General Description
The MAX3040MAX3045 is a family of 5V quad RS-485/RS-422 transmitters designed for digital data transmission over twisted-pair balanced lines. All transmitter outputs are protected to ±10kV using the Human Body Model. In addition the MAX3040MAX3045 withstand ±4kV per IEC 1000-4-4 Electrical Fast Transient/Burst Stressing. The MAX3040/MAX3043 (250kbps) and the MAX3041/MAX3044 (2.5Mbps) are slew-rate limited transmitters that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free transmission.
The MAX3040MAX3045 feature a hot-swap capability* that eliminates false transitions on the data cable during power-up or hot insertion. The MAX3042B/MAX3045B are optimized for data transfer rates up to 20Mbps, the MAX3041/MAX3044 for data rates up to 2.5Mbps, and the MAX3040/MAX3043 for data rates up to 250kbps.The MAX3040MAX3045 offer optimum performance when used with the MAX3093E or MAX3095 5V quad differential line receivers or MAX3094E/MAX3096 3V quad differential line receivers.
MAX3042 Maximum Ratings
All voltages referenced to ground (GND).
Supply Voltage (VCC)..........................................................+7V
Control Input Voltage (EN, EN, EN_) ........-0.3V to (VCC + 0.3V)
Driver Input Voltage (T_IN).......................-0.3V to (VCC + 0.3V)
Driver Output Voltage (Y_, Z_)
(Driver Disabled) ...............................................-7.5V to +12.5V
Driver Output Voltage (Y_, Z_)
(Driver Enabled) ...................................................-7.5V to +10V
Continuous Power Dissipation (TA = +70°C)
16-Pin TSSOP (derate 9.4mW/°C above +70°C) ..........755mW
16-Pin Narrow SO (derate 8.70mW/°C above +70°C) ..696mW
16-Pin Wide SO (derate 9.52mW/°C above +70°C) .....762mW
Operating Temperature Range
MAX304_C_E .......................................................0°C to +70°C
MAX304_E_E ....................................................-40°C to +85°C
Maximum Junction Temperature .....................................+150°C
Storage Temperature Range ..........................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C
MAX3042 Features
ESD Protection: ±10kV-Human Body Model
Single +5V Operation
Guaranteed Device-to-Device Skew (MAX3040/MAX3041/MAX3043/MAX3044)
Pin-Compatible with 'SN75174, '26LS31C and LTC487
Hot-Swappable for Telecom Applications
Up to 20Mbps Data Rate (MAX3042B/MAX3045B)
Slew-Rate Limited (Data Rates at 2.5Mbps and 250kbps)
2nA Low-Power Shutdown Mode
1mA Operating Supply Current
±4kV EFT Fast Transient Burst Immunity per IEC 1000-4-4
Level 2 Surge Immunity per IEC 1000-4-5,Unshielded Cable Model
Ultra-Small 16-Pin TSSOP, 16-Pin Narrow SO, and Wide 16-Pin SO
MAX3042 Typical Application
Telecommunications Equipment
Industrial Motor Control
Transmitter for ESD-Sensitive Applications
Hand-Held Equipment
Industrial PLCs
Networking
Industrial Motor Control
Transmitter for ESD-Sensitive Applications
Hand-Held Equipment
Industrial PLCs
Networking

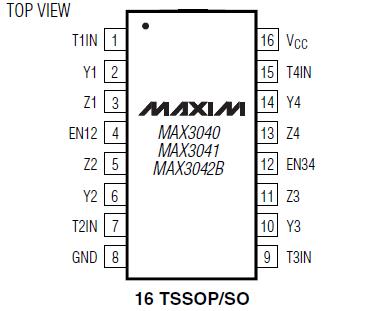

MAX3042 Connection Diagram
MAX3042
