MFG:MAXIM Package Cooled:TSSOP D/C:8
MFG: MAXIM
Package Cooled: TSSOP
D/C: 8
Description: The MAX3384E is a 3V-powered EIA/TIA-232 and V.28/V.24 communications interface with low power require...
The MAX3384E is a 3V-powered EIA/TIA-232 and V.28/V.24 communications interface with low power requirements, high data-rate capabilities, and en hanced electrostatic discharge (ESD) protection. All transmitter outputs and receiver inputs are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge, and ±15kV using the Human Body Model.
The transceiver has a proprietary low-dropout transmitter output stage, delivering true RS-232 performance from a +3.0V to +5.5V supply with a dual charge pump. The charge pump requires only four small 0.1µF capacitors for operation from a +3.3V supply. Each device is guaranteed to run at data rates of 250kbps while maintaining RS-232 output levels. The MAX3384Ehas two receivers and two drivers. It features a 1µA shutdown mode that reduces power consumption and extends battery life in portable systems. The MAX3384E is available in a space-saving SSOP package in either the commercial (0°C to +70 C) or extended temperature (-40°C to +85°C) range.
VCC to GND................................................................-0.3V to +6V
V+ to GND (Note 1)....................................................-0.3V to +7V
V- to GND (Note 1).....................................................+0.3V to -7V
V+ + |V-| (Note 1)..................................................................+13V
Input Voltages
T_IN, SHDN to GND....................................................-0.3V to +6V
R_IN to GND..........................................................................±25V
Output Voltages
T_OUT to GND....................................................................±13.2V
R_OUT...........................................................-0.3V to (VCC+ 0.3V)
Maximum Current into T_OUT...........................................±100mA
Short-Circuit Duration, T_OUT to GND..........................Continuous
Continuous Power Dissipation (TA= +70°C)
20-Pin SSOP (derate 8.00mW/°C above +70°C)...............640mW
18-Pin SO (derate 9.52mW/°C above +70°C)...................762mW
Operating Temperature Ranges
MAX3384ECAP..........................................................0°C to +70°C
MAX3384ECWN.........................................................0°C to +70°C
MAX3384EEAP........................................................-40°C to +85°C
Junction Temperature...........................................................150°C
Storage Temperature Range...............................-65°C to +150°C
Lead Temperature (soldering, 10s)....................................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Note 1:
V+ and V- can have maximum magnitudes of 7V, but their absolute difference cannot exceed 13V.

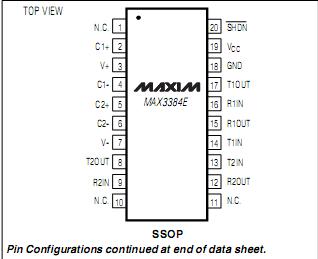

MAX3384E
