General Description
MAX4289 General Description
The MAX4289 micropower, operational amplifier is optimized for ultra-low supply voltage operation. The amplifier consumes only 9A of quiescent supply current and is fully specified for operation from a single 1.0V to 5.5V power supply. This ultra-low voltage operation together with the low quiescent current consumption make the MAX4289 ideal for use in battery-powered systems operated from as little as a single alkaline cell. The MAX4289 also features a wide input common-mode range that includes the ground, and an output voltage swing that is virtually Rail-to-Rail®, allowing almost all of the power supply to be used for signal voltage.
The low input offset voltage and low input bias current specifications along with the high open-loop gain make the MAX4289 well-suited to applications requiring a high degree of precision.
The MAX4289 is available in a tiny 6-pin SOT23 package. All specifications are guaranteed over the extended temperature range of -40 to +85.
MAX4289 Maximum Ratings
Power-Supply Voltage (VCC to GND)......................................6V
Input Voltage (IN+ or IN-) .......................(VCC + 0.3V) to -0.3V
Input Current (IN+ or IN-)................................................20mA
Output Short-Circuit Duration to VCC or GND...........Continuous
Continuous Power Dissipation (TA = +70)
6-Pin SOT23 (derate 8.7mW/ above +70).................696mW
8-Pin SO (derate 5.88mW/ above +70).....................471mW
Operating Temperature Range ............................-40 to +85
Junction Temperature.......................................................+150
Storage Temperature Range ..............................-65 to +150
Lead Temperature (soldering, 10s) .................................+300
Input Voltage (IN+ or IN-) .......................(VCC + 0.3V) to -0.3V
Input Current (IN+ or IN-)................................................20mA
Output Short-Circuit Duration to VCC or GND...........Continuous
Continuous Power Dissipation (TA = +70)
6-Pin SOT23 (derate 8.7mW/ above +70).................696mW
8-Pin SO (derate 5.88mW/ above +70).....................471mW
Operating Temperature Range ............................-40 to +85
Junction Temperature.......................................................+150
Storage Temperature Range ..............................-65 to +150
Lead Temperature (soldering, 10s) .................................+300
MAX4289 Features
`Ultra-Low Voltage Operation: Guaranteed Specifications from 1.0V to 5.5V
`Input Common-Mode Range: 0 to (VCC - 0.2V)
`Ultra-Low Power Consumption: 9A Supply Current (typ)
`Optimized for Operation from Single-Cell Battery-Powered Systems
`Compatible with 3.0V and 5.0V Single-Supply Systems
`Low Offset Voltage: 0.2mV
`Low Input Bias Current: 5nA
`High Open-Loop Voltage Gain: 90dB
`Rail-to-Rail Output Stage Drives 5k Load
`No Output Phase Reversal for Overdriven Inputs
`Available in a Tiny 6-Pin SOT23 (3mm * 3mm)
`Input Common-Mode Range: 0 to (VCC - 0.2V)
`Ultra-Low Power Consumption: 9A Supply Current (typ)
`Optimized for Operation from Single-Cell Battery-Powered Systems
`Compatible with 3.0V and 5.0V Single-Supply Systems
`Low Offset Voltage: 0.2mV
`Low Input Bias Current: 5nA
`High Open-Loop Voltage Gain: 90dB
`Rail-to-Rail Output Stage Drives 5k Load
`No Output Phase Reversal for Overdriven Inputs
`Available in a Tiny 6-Pin SOT23 (3mm * 3mm)
MAX4289 Typical Application
·Single-Cell Systems
·Portable Electronic
·Equipment
·Battery-Powered
·Instrumentation
·Hearing Aids Using Zinc
·Air Battery
·Strain Gauges
·Cellular Phones
·Notebook Computers
·Sensor Amplifiers
·Portable Communication
·Devices
·Portable Electronic
·Equipment
·Battery-Powered
·Instrumentation
·Hearing Aids Using Zinc
·Air Battery
·Strain Gauges
·Cellular Phones
·Notebook Computers
·Sensor Amplifiers
·Portable Communication
·Devices

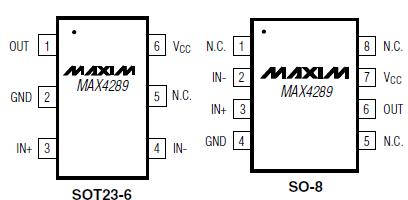

MAX4289 Connection Diagram
MAX4289
PDF/DataSheet Download
- Datasheet: MAX4289
- File Size: 287092 KB
- Manufacturer: Maxim
- Click here to Download
