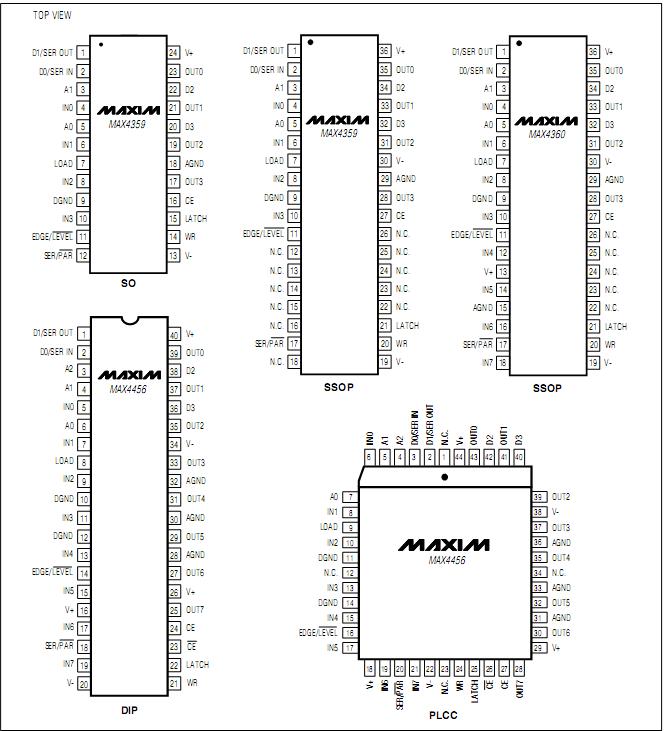

MAX4456

Total Supply Voltage (V+ to V-)..............................................+12V
Positive Supply Voltage (V+) Referred to AGND........-0.3V to +12V
Negative Supply Voltage (V-) Referred to AGND.......-12V to +0.3V
DGND to AGND......................................................................±0.3V
Buffer Short Circuit to Ground when
Not Exceeding Package Power Dissipation.......................Indefinite
Analog Input Voltage................................(V+ + 0.3V) to (V- - 0.3V)
Digital Input Voltage.................................(V+ + 0.3V) to (V- - 0.3V)
Input Current, Power On or Off
Digital Inputs.........................................................................±20mA
Analog Inputs........................................................................±50mA
Continuous Power Dissipation (T_A= +70°C) 36-Pin SSOP
(derate 11.8mW/°C above +70°C)......................................941mW
24-Pin SO
(derate 11.8mW/°C above +70°C)......................................941mW
40-Pin Plastic DIP (derate 11.3mW/°C above +70°C)..........889mW
44-Pin PLCC (derate 13.3mW/°C above +70°C)................1066mW
Operating Temperature Ranges
MAX4456C _ _.............................................................0°C to +70°C
MAX4_ _ _E_ _.........................................................-40°C to +85°C
Junction Temperature...........................................................+150°C
Storage Temperature Range..................................-65°C to +150°C
Lead Temperature (soldering, 10sec)...................................+300°C

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
