Purchase MAX4503ESA, In-stock MAX4503ESA From SeekIC.
MFG:Maxim
- Table of contents:
MAX4503ESA
-
Suppliers
DataSheet
General Description
MAX4503ESA Maximum Ratings
(Voltages Referenced to V-)
V+..............................................................................-0.3V, +13V
Voltage into Any Terminal (Note 1) ..........-0.3V to (V+ + 0.3V) or
±10mA (whichever occurs first)
Continuous Current into Any Terminal ..............................±10mA
Peak Current, NO_ or COM_
(pulsed at 1ms,10% duty cycle)........................................±20mA
Continuous Power Dissipation (TA = +70°C)
8-Pin Plastic DIP (derate 9.09mW/°C above +70°C) ....727mW
8-Pin SO (derate 5.88mW/°C above +70°C).................471mW
5-Pin SOT23-5 (derate 7.1mW/°C above +70°C) .........571mW
8-Pin CERDIP (derate 8.00mW/°C above +70°C)..........640mW
Operating Temperature Ranges
MAX4503C_ _/MAX4504C_ _ .............................0°C to +70°C
MAX4503E_ _/MAX4504E_ _ ..........................-40°C to +85°C
MAX4503MJA/MAX4504MJA ...........................-55°C to +125°C
Storage Temperature Range ............................-65°C to +150°C
Lead Temperature (soldering, 10sec) ..............................+300°C
MAX4503ESA Features
The MAX4503/MAX4504 are low-voltage, dual-supply,single-pole/single-throw (SPST), CMOS analog switch-es. The MAX4503 is normally open (NO). TheMAX4504 is normally closed (NC).
These CMOS switches can operate continuously withdual supplies between ±1.V and ±6V. Each switch can handle rail-to-rail analog signals. The off-leakage cur-rent is only 1nA at +25°C or 10nA at +85°C.
The digital input is CMOS-logic compatible when using±5V supplies. A unique logic input architecture allows this even though the parts have no ground pin.
For single-supply operation, use the MAX4501/MAX4502, which are pin-for-pin equivalents.
These CMOS switches can operate continuously withdual supplies between ±1.V and ±6V. Each switch can handle rail-to-rail analog signals. The off-leakage cur-rent is only 1nA at +25°C or 10nA at +85°C.
The digital input is CMOS-logic compatible when using±5V supplies. A unique logic input architecture allows this even though the parts have no ground pin.
For single-supply operation, use the MAX4501/MAX4502, which are pin-for-pin equivalents.
MAX4503ESA Typical Application
Battery-Operated Equipment
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communications Circuits
Cellular Phones
PCMCIA Cards
Modems

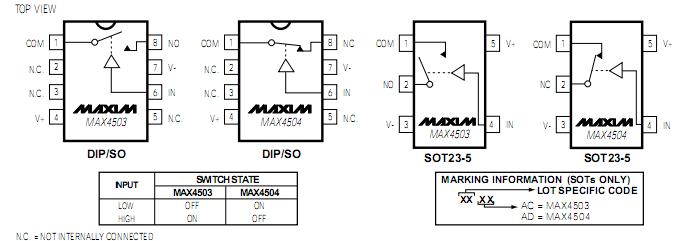

MAX4503ESA Connection Diagram
MAX4503ESA
