MFG:MAXIM Package Cooled:SOT23-5 D/C:2004
MFG: MAXIM
Package Cooled: SOT23-5
D/C: 2004
Description: The MAX4516/MAX4517 are single-pole/single-throw (SPST), CMOS, low-voltage, dual-supply analog switch-...
The MAX4516/MAX4517 are single-pole/single-throw (SPST), CMOS, low-voltage, dual-supply analog switch- es with very low switch on-resistance. The MAX4516 is normally open (NO). The MAX4517 is normally closed (NC).
These CMOS switches can operate continuously with dual supplies between ±1V and ±6V. Each switch can handle rail-to-rail analog signals. The off-leakage cur- rent maximum is only 1nA at +25°C or 20nA at +85°C.
The digital input is referenced to the positive power supply and is CMOS compatible. For pin-compatible parts for use with a single supply, refer to the MAX4514/MAX415.

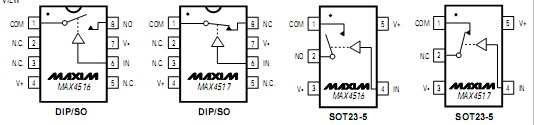

V+...........................................................................-0.3V, +13V
Voltage into Any Terminal (Note 1)
or ±20mA (whichever occurs first) .............-0.3V to (V+ + 0.3V)
Continuous Current into Any Terminal...........................±20mA
Peak Current, NO, NC, or COM_
(pulsed at 1ms, 10% duty cycle)...................................±30mA
ESD per Method 3015.7...............................................>2000V
Continuous Power Dissipation (TA= +70°C)
8-Pin Plastic DIP (derate 9.09mW/°C above +70°C)....727mW
8-Pin SO (derate 5.88mW/°C above +70°C)................471mW
5-Pin SOT23-5 (derate 7.1mW/°C above +70°C).........571mW
8-Pin CERDIP (derate 8.00mW/°C above +70°C).........640mW
Operating Temperature Ranges
MAX4516C_ _/MAX4517_ _................................0°C to +70°C
MAX4516E_ _/MAX4517E_ _...........................-40°C to +85°C
MAX4516MJA/MAX4517MJA............................-55°C to +125°C
Storage Temperature Range.........................-65°C to +150°C
Lead Temperature (soldering, 10sec)..........................+300°C
Available in SOT23-5 Package
±1V to ±6V Dual-Supply Operation
Guaranteed On-Resistance: 20Ω with ±5V
Supplies
Guaranteed Low Off-Leakage Currents:
1nA at +25°C
20nA at +85°C
Guaranteed Low On-Leakage Currents:
2nA at +25°C
40nA at +85°C
Low Charge Injection: 20pC Max
Fast Switching Speed: tON= 100ns, tOFF= 75ns
tON> tOFF at ±5V
CMOS Logic Compatible with ±5V Supplies
MAX4516
PDF/DataSheet Download
IC SW ANLG CMOS SPST N/C SOT23-5
IC SWITCH SPST SOT23-5
IC ANLG SW SPST LV NC 8-SOIC
IC SWITCH SPST 8SOIC
IC SW ANLG CMOS SPST N/C 8-SOIC
IC SWITCH SPST 8DIP
