General Description
MAX4560 General Description
The MAX4558/MAX4559/MAX4560 are low-voltage, CMOS analog ICs configured as an 8-to-1 multiplexer (MAX4558), a dual 4-to-1 multiplexer (MAX4559), and a triple single-pole/double-throw (SPDT) switch (MAX4560). Each switch is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup or damage.
These CMOS devices can operate continuously from dual supplies of ±2V to ±6V or from a +2V to +12V sin- glesupply. Each switch can handle Rail-to-Rail ® analog signals. The off-leakage current is only 1nA at +25°C or 10nA at +85°C max.
All digital inputs have +0.8V to +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using a single +5V supply or dual ±5V supplies.
MAX4560 Maximum Ratings
(Voltages referenced to VEE)
VCC ........................................................................-0.3V to +13V
Voltage into Any Terminal (Note 1).....(VEE - 0.3V) to (VCC+ 0.3V)
Continuous Current into Any Terminal ..............................±10mA
Peak Current, X, Y, Z, X_, Y_, Z_
(pulsed at 1ms, 10% duty cycle) ...................................±30mA
ESD per Method IEC 1000-4-2 (X, Y, Z, X_, Y_, Z_)
Air-Gap Discharge............................................................±12kV
Contact Discharge.............................................................±8kV
ESD per Method 3015.7
VCC, VEE, A, B, C, ENABLE, GND.........................................±2.5kV
X, Y, Z, X_, Y_, Z_...............................................................±15kV
VCC ........................................................................-0.3V to +13V
Voltage into Any Terminal (Note 1).....(VEE - 0.3V) to (VCC+ 0.3V)
Continuous Current into Any Terminal ..............................±10mA
Peak Current, X, Y, Z, X_, Y_, Z_
(pulsed at 1ms, 10% duty cycle) ...................................±30mA
ESD per Method IEC 1000-4-2 (X, Y, Z, X_, Y_, Z_)
Air-Gap Discharge............................................................±12kV
Contact Discharge.............................................................±8kV
ESD per Method 3015.7
VCC, VEE, A, B, C, ENABLE, GND.........................................±2.5kV
X, Y, Z, X_, Y_, Z_...............................................................±15kV
MAX4560 Features
ESD-Protected X, Y, Z and X_, Y_, Z_ Pins
±15kV (Human Body Model)
±12kV (IEC 1000-4-2, Air-Gap Discharge)
±8kV (IEC 1000-4-2, Contact Discharge)
Pin-Compatible with Industry-Standard
74HC4051/74HC4052/74HC4053
Guaranteed On-Resistance
220Ω with Single +5V Supply
160Ω with ±5V Supply
RON Match Between Channels: 2Ω (typ)
Guaranteed Low leakage Currents
1nA Off-Leakage (at +25°C)
1nA On-Leakage (at +25°C)
TTL-Compatible Inputs with +5V/±5V Supplies
Low Distortion: < 0.02% (600Ω)
Low Crosstalk: < -93dB (50Ω)
High Off-Isolation: < -96dB (50Ω)
±15kV (Human Body Model)
±12kV (IEC 1000-4-2, Air-Gap Discharge)
±8kV (IEC 1000-4-2, Contact Discharge)
Pin-Compatible with Industry-Standard
74HC4051/74HC4052/74HC4053
Guaranteed On-Resistance
220Ω with Single +5V Supply
160Ω with ±5V Supply
RON Match Between Channels: 2Ω (typ)
Guaranteed Low leakage Currents
1nA Off-Leakage (at +25°C)
1nA On-Leakage (at +25°C)
TTL-Compatible Inputs with +5V/±5V Supplies
Low Distortion: < 0.02% (600Ω)
Low Crosstalk: < -93dB (50Ω)
High Off-Isolation: < -96dB (50Ω)
MAX4560 Typical Application
Battery-Operated Equipment
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communications Circuits
High-ESD Environments
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communications Circuits
High-ESD Environments

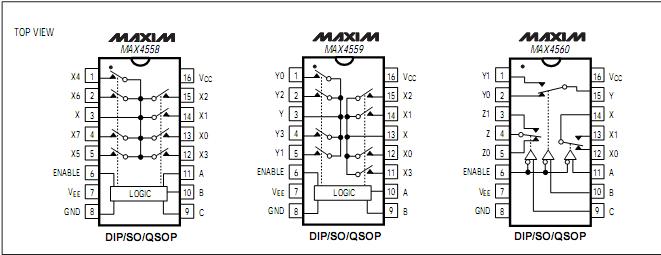

MAX4560 Connection Diagram
MAX4560
PDF/DataSheet Download
- Datasheet: MAX4560
- File Size: 312498 KB
- Manufacturer: Maixm
- Click here to Download
- ·MAX002
- FILTRONIC [Filtronic Compound Semiconductors]
- Optical Communications - Modulator Driver Amplifier
- 42133 KB
- ·MAX038
- MAXIM [Maxim Integrated Products]
- High-Frequency Waveform Generator
- 207992 KB
- ·MAX038C/D
- MAXIM [Maxim Integrated Products]
- High-Frequency Waveform Generator
- 207992 KB
- ·MAX038CPP
- MAXIM [Maxim Integrated Products]
- High-Frequency Waveform Generator
- 207992 KB
- ·MAX038CWP
- MAXIM [Maxim Integrated Products]
- High-Frequency Waveform Generator
- 207992 KB
- ·MAX038EPP
- MAXIM [Maxim Integrated Products]
- High-Frequency Waveform Generator
- 207992 KB
- ·MAX038EVKIT
- Maxim
- Evaluation Kit for the MAX038
- 106491 KB
- ·MAX038EWP
- MAXIM [Maxim Integrated Products]
- High-Frequency Waveform Generator
- 207992 KB
MAX4560 Relative Products
MAX456
The MAX456 is the first monolithic CMOS 8 x 8 video crosspoint switch that significantly reduces component count, board space, and cost. The crosspoint switch contains a digitally controlled matrix of 64 T-switches that connect eight video input signals to a...
MAX455EPP+
IC MUX AMP VIDEO CMOS 20-DIP
.jpg)
MAX455CWP+T
IC MUX AMP VIDEO CMOS 20-SOIC
-
MAX455CWP+
IC MUX/VIDEOAMP 8CH 50MHZ 20SOIC
-
MAX455CPP+
IC MUX/VIDEOAMP 8CH 50MHZ 20-DIP

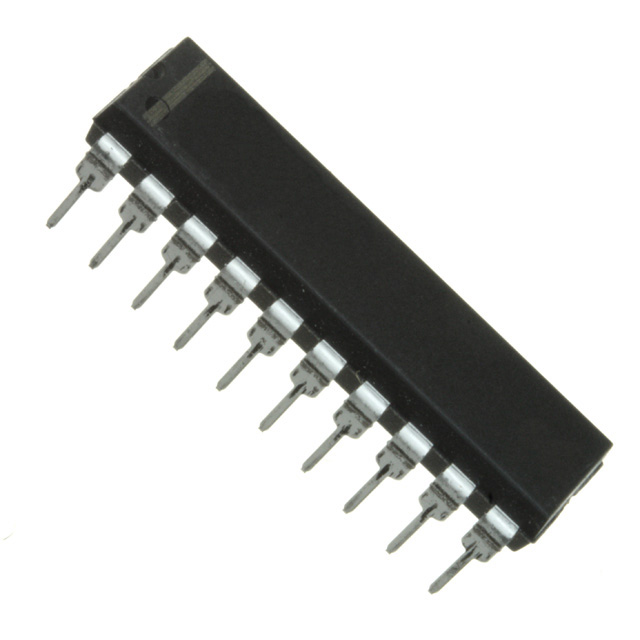

MAX455CPP
