Purchase MAX6315, In-stock MAX6315 From SeekIC.
Part Number: MAX6315
Description: The MAX6315 low-power CMOS microprocessor (P)supervisory circuit is designed to monitor power supplies in P and digi...
- Table of contents:
MAX6315
-
Suppliers
DataSheet
General Description
MAX6315 General Description
The MAX6315 low-power CMOS microprocessor (P)supervisory circuit is designed to monitor power supplies in P and digital systems. It provides excellent circuit reliability and low cost by eliminating external components and adjustments. The MAX6315 also provides a debounced manual reset input.
This device performs a single function: it asserts a reset signal whenever the VCC supply voltage falls below a preset threshold or whenever manual reset is asserted. Reset remains asserted for an internally programmed interval (reset timeout period) after VCC has risen above the reset threshold or manual reset is deasserted. The MAX6315's open-drain RESET output can be pulled up to a voltage higher than VCC.
MAX6315 Maximum Ratings
VCC....................................................................-0.3V to +6.0V
RESET.................................................................-0.3V to +6.0V
All Other Pins............................................-0.3V to (VCC + 0.3V)
Input Current (VCC) .........................................................20mA
Output Current (RESET).....................................................20mA
Rate of Rise (VCC) ........................................................100V/s
Continuous Power Dissipation (TA = +70°C)
SOT143 (derate 4mW/°C above +70°C)......................320mW
Operating Temperature Range .......................-40°C to +85°C
Storage Temperature Range .........................-65°C to +160°C
Lead Temperature (soldering, 10sec) ...........................+300°C
RESET.................................................................-0.3V to +6.0V
All Other Pins............................................-0.3V to (VCC + 0.3V)
Input Current (VCC) .........................................................20mA
Output Current (RESET).....................................................20mA
Rate of Rise (VCC) ........................................................100V/s
Continuous Power Dissipation (TA = +70°C)
SOT143 (derate 4mW/°C above +70°C)......................320mW
Operating Temperature Range .......................-40°C to +85°C
Storage Temperature Range .........................-65°C to +160°C
Lead Temperature (soldering, 10sec) ...........................+300°C
MAX6315 Features
Small SOT143 Package
Open-Drain RESET Output Can Exceed VCC
Precision, Factory-Set VCC Reset Thresholds:100mV Increments from 2.5V to 5V
±1.8% Reset Threshold Accuracy at TA = +25°C
±2.5% Reset Threshold Accuracy Over Temp.
Four Reset Timeout Periods Available:1ms, 20ms, 140ms, or 1120ms (minimum)
Immune to Short VCC Transients
5A Supply Current
Pin-Compatible with MAX811
Open-Drain RESET Output Can Exceed VCC
Precision, Factory-Set VCC Reset Thresholds:100mV Increments from 2.5V to 5V
±1.8% Reset Threshold Accuracy at TA = +25°C
±2.5% Reset Threshold Accuracy Over Temp.
Four Reset Timeout Periods Available:1ms, 20ms, 140ms, or 1120ms (minimum)
Immune to Short VCC Transients
5A Supply Current
Pin-Compatible with MAX811
MAX6315 Typical Application
Computers
Controllers
Intelligent Instruments
Critical P and C Power Monitoring
Portable/Battery-Powered Equipment
Controllers
Intelligent Instruments
Critical P and C Power Monitoring
Portable/Battery-Powered Equipment

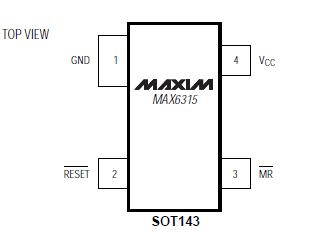

MAX6315 Connection Diagram
MAX6315
