MAX706

The MAX705-MAX708/MAX813L microprocessor (µP) supervisory circuits reduce the complexity and number of components required to monitor power-supply and battery functions in µP systems.  These devices signifi-cantly improve system reliability and accuracy com-pared to separate ICs or discrete components.

The MAX705/MAX706/MAX813L provide four functions:
1) A reset output during power-up, power-down, and brownout conditions.
2) An independent watchdog output that goes low if the watchdog input has not been toggled within 1.6 seconds.
3) A 1.25V threshold detector for power-fail warning,low-battery detection, or for monitoring a power sup-ply other than +5V.
4) An active-low manual-reset input.

The MAX707/MAX708 are the same as the MAX705/ MAX706, except an active-high reset is substituted for the watchdog timer.  The MAX813L is the same as the MAX705, except RESET is provided instead of RESET.

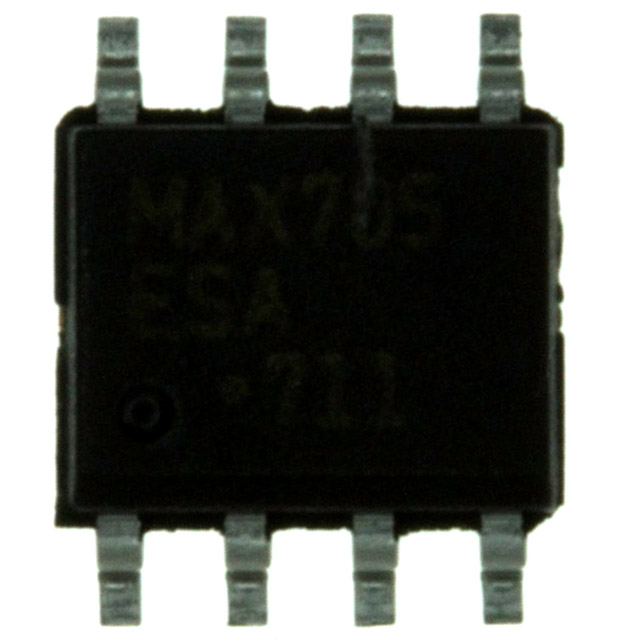

Two supply-voltage monitor levels are available:  The MAX705/MAX707/MAX813L generate a reset pulse when the supply voltage drops below 4.65V, while the MAX706/MAX708 generate a reset pulse below 4.40V. All four parts are available in 8-pin DIP, SO and µMAX packages.
