Purchase MAX7410, In-stock MAX7410 From SeekIC.
Part Number: MAX7410
Description: The MAX7409/MAX7410/MAX7413/MAX7414 5th-order, lowpass, switched-capacitor filters (SCFs) operate from...
- Table of contents:
MAX7410
-
Suppliers
DataSheet
General Description
MAX7410 General Description
The MAX7409/MAX7410/MAX7413/MAX7414 5th-order, lowpass, switched-capacitor filters (SCFs) operate from a single +5V (MAX7409/MAX7410) or +3V (MAX7413/ MAX7414) supply. These devices draw only 1.2mA of supply current and allow corner frequencies from 1Hz to 15kHz, making them ideal for low-power post-DAC filtering and anti-aliasing applications. They feature a shutdown mode, which reduces the supply current to 0.2A.
Two clocking options are available on these devices: self-clocking (through the use of an external capacitor) or external clocking for tighter corner-frequency control. An offset adjust pin allows for adjustment of the DC output level.
The MAX7409/MAX7413 Bessel filters provide low overshoot and fast settling, while the MAX7410/MAX7414 Butterworth filters provide a maximally flat passband response. Their fixed response simplifies the design task to selecting a clock frequency.
MAX7410 Maximum Ratings
ABSOLUTE MAXIMUM RATINGS
VDD to GND..............................................................-0.3V to +6V
IN, OUT, COM, OS, CLK, SHDN ....................-0.3V to (VDD + 0.3V)
OUT Short-Circuit Duration...................................................1sec
Continuous Power Dissipation (TA = +70°C)
8-Pin DIP (derate 9.09mW/°C above +70°C)...............727mW
8-Pin µMAX (derate 4.1mW/°C above +70°C) .............330mW
Operating Temperature Ranges
MAX74 _ _C_A ...................................................0°C to +70°C
MAX74 _ _E_A ................................................-40°C to +85°C
Storage Temperature Range ........................-65°C to +160°C
Lead Temperature (soldering, 10sec) ..........................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
MAX7410 Features
5th-Order Lowpass Filters:
Bessel Response (MAX7409/MAX7413)
Butterworth Response (MAX7410/MAX7414)
Clock-Tunable Corner Frequency (1Hz to 15kHz)
Single-Supply Operation:
+5V (MAX7409/MAX7410)
+3V (MAX7413/MAX7414)
Low Power:
1.2mA (operating mode)
0.2A (shutdown mode)
Available in 8-Pin MAX/DIP Packages
Low Output Offset: ±4mV
Bessel Response (MAX7409/MAX7413)
Butterworth Response (MAX7410/MAX7414)
Clock-Tunable Corner Frequency (1Hz to 15kHz)
Single-Supply Operation:
+5V (MAX7409/MAX7410)
+3V (MAX7413/MAX7414)
Low Power:
1.2mA (operating mode)
0.2A (shutdown mode)
Available in 8-Pin MAX/DIP Packages
Low Output Offset: ±4mV
MAX7410 Typical Application
ADC Anti-Aliasing
CT2 Base Stations
DAC Postfiltering
Speech Processing
Air-Bag Electronics
CT2 Base Stations
DAC Postfiltering
Speech Processing
Air-Bag Electronics

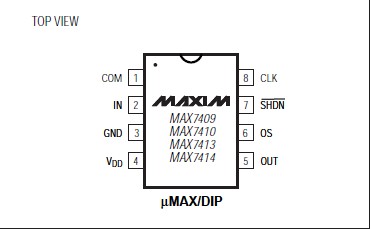

MAX7410 Connection Diagram
MAX7410
PDF/DataSheet Download
- Datasheet: MAX7410
- File Size: 137247 KB
- Manufacturer: MAXIM [Maxim Integrated Products]
- Click here to Download
