Purchase MAX7411, In-stock MAX7411 From SeekIC.
Part Number: MAX7411
Description: The MAX7408/MAX7411/MAX7412/MAX7415 5th-order, lowpass, elliptic, switched-capacitor filters (SCFs) op...
- Table of contents:
MAX7411
-
Suppliers
DataSheet
General Description
MAX7411 General Description
The MAX7408/MAX7411/MAX7412/MAX7415 5th-order, lowpass, elliptic, switched-capacitor filters (SCFs) operate from a single +5V (MAX7408/MAX7411) or +3V (MAX7412/MAX7415) supply. The devices draw only 1.2mA of supply current and allow corner frequencies from 1Hz to 15kHz, making them ideal for low-power post-DAC filtering and anti-aliasing applications. They can be put into a low-power mode, reducing supply current to 0.2A.
Two clocking options are available: self-clocking (through the use of an external capacitor) or external clocking for tighter cutoff-frequency control. An offset-adjust pin allows for adjustment of the DC output level.
The MAX7408/MAX7412 deliver 53dB of stopband rejection and a sharp rolloff with a transition ratio of 1.6. The MAX7411/MAX7415 achieve a sharper rolloff with a transition ratio of 1.25 while still providing 37dB of stopband rejection. Their fixed response limits the design task to selecting a clock frequency.
MAX7411 Maximum Ratings
VDD to GND..............................................................-0.3V to +6V
IN, OUT, COM, OS, CLK,SHDN .....................-0.3V to (VDD + 0.3V)
OUT Short-Circuit Duration...................................................1sec
Continuous Power Dissipation (TA = +70°C)
8-Pin DIP (derate 6.90mW/°C above +70°C)...............552mW
8-Pin µMAX (derate 4.1mW/°C above +70°C) .............330mW
Operating Temperature Ranges
MAX74_ _C_A .....................................................0°C to +70°C
MAX74_ _E_A ..................................................-40°C to +85°C
Storage Temperature Range .........................-65°C to +160°C
Lead Temperature (soldering, 10sec) ...........................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
MAX7411 Features
5th-Order, Elliptic Lowpass Filters
Low Noise and Distortion: -80dB THD + Noise
Clock-Tunable Corner Frequency (1Hz to 15kHz)
Single-Supply Operation
+5V (MAX7408/MAX7411)
+3V (MAX7412/MAX7415)
Low Power
1.2mA (operating mode)
0.2A (shutdown mode)
Available in 8-Pin MAX/DIP Packages
Low Output Offset: ±4mV
Low Noise and Distortion: -80dB THD + Noise
Clock-Tunable Corner Frequency (1Hz to 15kHz)
Single-Supply Operation
+5V (MAX7408/MAX7411)
+3V (MAX7412/MAX7415)
Low Power
1.2mA (operating mode)
0.2A (shutdown mode)
Available in 8-Pin MAX/DIP Packages
Low Output Offset: ±4mV
MAX7411 Typical Application
ADC Anti-Aliasing
CT2 Base Stations
Post-DAC Filtering
Speech Processing
CT2 Base Stations
Post-DAC Filtering
Speech Processing

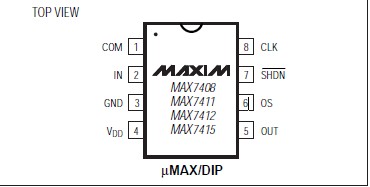

MAX7411 Connection Diagram
MAX7411
PDF/DataSheet Download
- Datasheet: MAX7411
- File Size: 140873 KB
- Manufacturer: MAXIM [Maxim Integrated Products]
- Click here to Download
