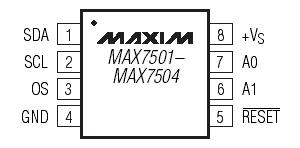

MAX7504

(Note 1)
+V_S to GND ........................................................... -0.3V to +6V
OS, SDA, SCL to GND.......................................... -0.3V to +6.0V
All Other Pins to GND................................ -0.3V to (+V_S + 0.3V)
Input Current at Any Pin (Note 2) .................................... +5mA
Package Input Current (Note 2) ..................................... +20mA
ESD Protection (all pins, Human Body Model, Note 3)... ±2000V
Continuous Power Dissipation (TA = +70°C)
8-Pin µMAX (derate 4.5mW/°C above +70°C) ............ 362mW
8-Pin SO (derate 5.9mW/°C above +70°C)................. 471mW
Operating Temperature Range ...................  -55°C to +125°C
Junction Temperature .................................................. +150°C
Storage Temperature Range ....................... -65°C to +150°C
Lead Temperature (soldering, 10s) ............................. +300°C
Note 1: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. DC and AC electrical specifications do not apply when operating the device beyond its rated operating conditions.
Note 2: When the input voltage (VI) at any pin exceeds the power supplies (VI < GND or VI > + VS), the current at that pin should be limited to 5mA. The 20mA maximum package input current rating limits the number of pins that can safely exceed the power supplies with an input current of 5mA to 4.
Note 3: Human Body Model, 100pF discharged through a 1.5kΩ resistor.
