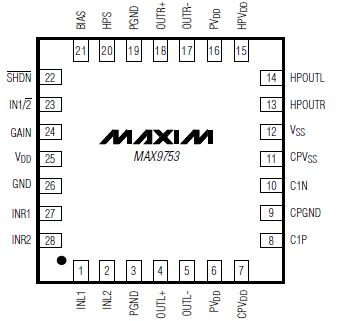

MAX9753

V_DD, PV_DD, HPV_DD, CPV_DD to GND ....................... -0.3V to +6V
GND to PGND or CPGND ................................... -0.3V to +0.3V
CPV_SS or V_SS to PGND ...................................... -6.0V to +0.3V
C1N to PGND .......................................(CPV_SS - 0.3V) to +0.3V
C1P to PGND....................................... -0.3V to (CPV_DD + 0.3V)
HP_ to PGND......................... (HPV_SS - 0.3V) to (HPV_DD + 0.3V)
HP_ to PGND........................................................... -3V to +3V
Any Other Pin to PGND ........................... -0.3V to (VDD + 0.3V)
Duration of OUT_ Short Circuit to PGND or PV_DD......Continuous
Duration of OUT_+ Short Circuit to OUT_- ..............Continuous
Duration of HP_ Short Circuit to PGND ....................Continuous
Continuous Current Into/Out of PVDD, OUT_, PGND ..........1.7A
Continuous Current Into/Out of CPVDD, C1N, CPGND,
   C1P, CPVSS, VSS, HPVDD, HP_ ......................................0.85A
Continuous Input Current (all other pins) .................... ±20mA
Continuous Power Dissipation (TA = +70°C)
   28-Pin TQFN (derate 21.3mW/°C above +70°C) ....1702mW
Operating Temperature Range .......................-40°C to +85°C
Storage Temperature Range ........................-65°C to +150°C
Junction Temperature...................................................+150°C
Lead Temperature (soldering, 10s) .............................+300°C

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
