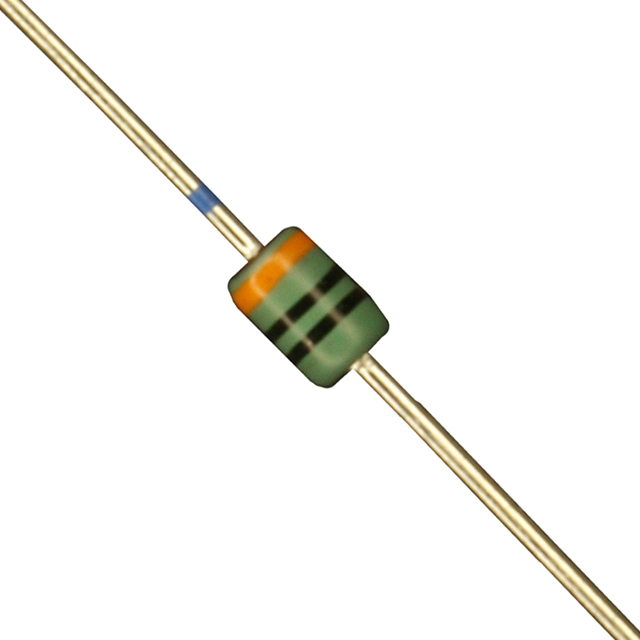

MAZ4047-M Product Image

MAZ Series Datasheet download

Five Points

Part Number: MAZ4047-M











Urgent Purchase

MAZ4047-M Maximum Ratings

Parameter
Symbol
Rating
Unit
Average forward current
IF(AV)
250
mA
Instanious forward current
IFRM
250
mA
Total power dissipation*
Ptot
40
mW
Junction temperature
Tj
200
°C
Storage temperature
Tstg
−65 to +200
°C
Note) * : With a printed-circuit board

MAZ4047-M Features

• Extremely low noise voltage caused from diode (1/3 to 1/10 of our conventional MAZ4000 series)
• Extremely good rising performance (in the low-current range)
• Easy-to-identify the zener-voltage rank by the color bands
• Easy-to-select the optimum diode because of their finely divided zener-voltage ranks
• Easy-to-mount through the adoption of the small glass-sealed DHD package (DO-34)

MAZ4047-M datasheet

MAZ4047-M
PDF/DataSheet Download

  • Datasheet: MAZ4047-M
  • File Size: 78496 KB
  • Manufacturer: PANASONIC [Panasonic Semiconductor]
  • Click here to Download
