The Fujitsu MB15E05SL is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 2.0 GHz prescaler.
The 2.0 GHz prescaler has a dual modulus division ratio of 64/65 or 128/129 enabling pulse swallowing operation.
The supply voltage range is between 2.4 V and 3.6 V. The MB15E05SL uses the latest BiCMOS process, as a result the supply current is typically 3.0 mA at 2.7 V. A refined charge pump supplies well-balanced output currents of 1.5 mA and 6 mA. The charge pump current is selectable by serial data.
MB15E05SL is ideally suited for wireless mobile communications, such as GSM (Global System for Mobile Communications) and PCS.
MB15E05SL Maximum Ratings
| Parameter |
Symbol |
Condition |
Rating |
Unit |
Remark | |
|
Min. |
Max. | |||||
|
Power supply voltage |
VCC |
0.5 |
4.0 |
V |
| |
|
VP |
VCC |
6.0 |
V |
| ||
|
Input voltage |
VI |
0.5 |
VCC +0.5 |
V |
| |
|
Output voltage |
VO |
Except Do |
GND |
VCC |
V |
|
|
VO |
Do |
GND |
VP |
V |
| |
|
Storage temperature |
Tstg |
55 |
+125 |
v |
||
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB15E05SL Features
• High frequency operation: 2.0 GHz max
• Low power supply voltage: VCC = 2.4 to 3.6 V
• Ultra Low power supply current: ICC = 3.0 mA typ. (VCC = Vp = 2.7 V, Ta = +25, in locking state)
ICC = 3.5 mA typ. (VCC = Vp = 3.0 V, Ta = +25, in locking state)
• Direct power saving function: Power supply current in power saving mode
Typ. 0.1 mA (VCC = Vp = 3.0 V, Ta = +25), Max. 10 mA (VCC = Vp = 3.0 V)
• Dual modulus prescaler: 64/65 or 128/129
• Serial input 14-bit programmable reference divider: R = 3 to 16,383
• Serial input programmable divider consisting of:
- Binary 7-bit swallow counter: 0 to 127
- Binary 11-bit programmable counter: 3 to 2,047
• Software selectable charge pump current
• On-chip phase control for phase comparator
• Operating temperature: Ta = 40 to +85
• Pin compatible with MB15E05, MB15E05L
• Low power supply voltage: VCC = 2.4 to 3.6 V
• Ultra Low power supply current: ICC = 3.0 mA typ. (VCC = Vp = 2.7 V, Ta = +25, in locking state)
ICC = 3.5 mA typ. (VCC = Vp = 3.0 V, Ta = +25, in locking state)
• Direct power saving function: Power supply current in power saving mode
Typ. 0.1 mA (VCC = Vp = 3.0 V, Ta = +25), Max. 10 mA (VCC = Vp = 3.0 V)
• Dual modulus prescaler: 64/65 or 128/129
• Serial input 14-bit programmable reference divider: R = 3 to 16,383
• Serial input programmable divider consisting of:
- Binary 7-bit swallow counter: 0 to 127
- Binary 11-bit programmable counter: 3 to 2,047
• Software selectable charge pump current
• On-chip phase control for phase comparator
• Operating temperature: Ta = 40 to +85
• Pin compatible with MB15E05, MB15E05L

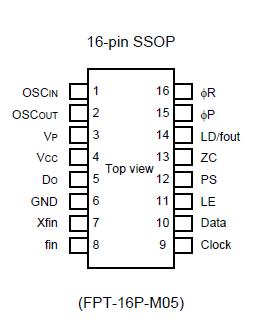

MB15E05SL Connection Diagram
