Features:

• 16-bit bus interface
• Multiple VCC and GND pins minimize
   switching noise
• 3-State buffers
• Live insertion/extraction permitted
• Output capability: +64 mA/32mA
• Latch-up protection exceeds 500mA
   per Jedec JC40.2 Std 17
• ESD protection exceeds 2000 V per
  MIL STD 883 Method 3015 and
  200 V per Machine Model
• Power-up 3-State


Pinout

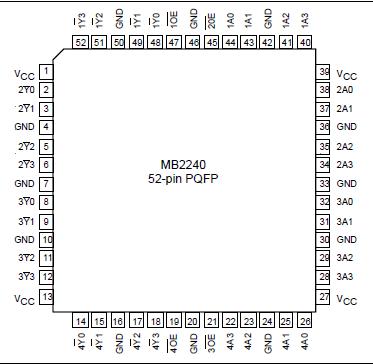

Connection Diagram


Specifications

SYMBOL

PARAMETER

CONDITIONS

RATING

UNIT

VCC

DC supply voltage



0.5 to +7.0

V

IIK

DC input diode current

VI < 0

18

mA

VI

DC input voltage3



1.2 to +7.0

V

IOK

DC output diode current

VO < 0

50

mA

VOUT

DC output voltage3

output in Off or High state

0.5 to +5.5

V

IOUT

DC output current

output in Low state

128

mA

Tstg

Storage temperature range



65 to 150

°C

NOTES:
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the
device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to
absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction
temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.
3. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.


Description

The MB2240 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

The MB2240 device is an inverting 16-bit buffer that is ideal for driving bus lines. The device features four Output Enables (1OE, 2OE, 3OE, 4OE), each controlling four of the 3-State outputs.
