Part Number: MB2244
Description: The MB2244 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high ou...
- Table of contents:
MB2244
-
Suppliers
DataSheet
General Description
MB2244 General Description
The MB2244 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.
The MB2244 device is an 16-bit buffer that is ideal for driving bus lines. The device features four Output Enables (1OE, 2OE, 3OE, 4OE), each controlling four of the 3-State outputs.
MB2244 Maximum Ratings
|
SYMBOL |
PARAMETER |
CONDITIONS |
RATING |
UNIT |
|
VCC |
DC supply voltage |
|
0.5 to +7.0 |
V |
|
IIK |
DC input diode current |
VI < 0 |
18 |
mA |
|
VI |
DC input voltage3 |
|
1.2 to +7.0 |
V |
|
IOK |
DC output diode current |
VO < 0 |
50 |
mA |
|
VOUT |
DC output voltage3 |
output in Off or High state |
0.5 to +5.5 |
V |
|
IOUT |
DC output current |
output in Low state |
128 |
mA |
|
Tstg |
Storage temperature range |
|
65 to 150 |
°C |
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the
device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to
absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction
temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.
3. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
MB2244 Features
• 16-bit bus interface
• Multiple VCC and GND pins minimize switching noise
• Power-up 3-State
• 3-State buffers
• Output capability: +64 mA/32mA
• Latch-up protection exceeds 500mA per Jedec Std 17
• ESD protection exceeds 2000 V per MIL STD 883 Method 3015
and 200 V per Machine Model
• Inputs are disabled during 3-State mode
• Multiple VCC and GND pins minimize switching noise
• Power-up 3-State
• 3-State buffers
• Output capability: +64 mA/32mA
• Latch-up protection exceeds 500mA per Jedec Std 17
• ESD protection exceeds 2000 V per MIL STD 883 Method 3015
and 200 V per Machine Model
• Inputs are disabled during 3-State mode

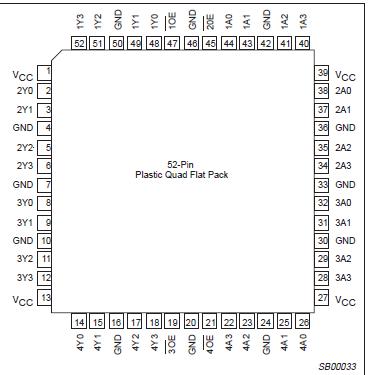

MB2244 Connection Diagram
MB2244
