Purchase MB3769A, In-stock MB3769A From SeekIC.
MFG:FUJITSU Package Cooled:DIP
- Table of contents:
MB3769A
-
Suppliers
DataSheet
General Description
MB3769A Maximum Ratings
| Rating | Symbol | Value | Unit |
| Power Supply Voltage | VCC | 20 | V |
| Output Current | IOUT | 120 (660*) | mA |
| Operation Amp. Input Voltage | Vin (OP) | VCC + 0.3 (20) | V |
| Power Dissipation: DIP |
PD | 1000** | mW |
|
: FPT |
PD | 620*** | mW |
| Operating Temp. : DIP | TOP | -30 to +85 | °C |
| : FPT | TOP | -30 to +75 | °C |
| Storage Temp. | TSTG | -55 to +125 | °C |
** : TA = 25 °C
*** : TA = 25 °C, FPT package is mounted on the epoxy board.
(4 cm x 4 cm x 0.15 cm)
NOTE : Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional operation
should be restricted to the conditions as detailed in the operational sections data sheet. Exposure to absolute maximum
rating conditions for extended periods may affect device reliability.

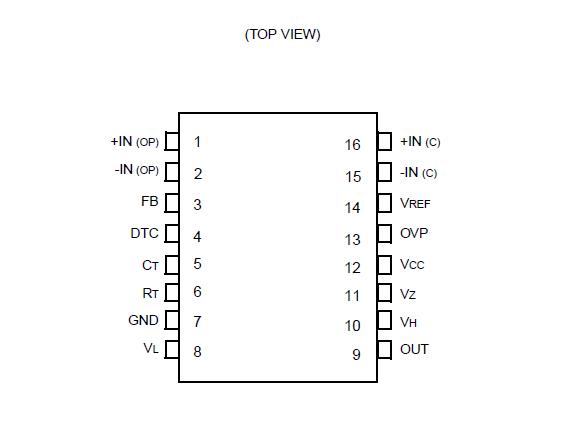

MB3769A Connection Diagram
