Purchase MB3785A, In-stock MB3785A From SeekIC.
MFG:1110 Package Cooled:FUJ
Part Number: MB3785A
MFG: 1110
Package Cooled: FUJ
Description: The MB3785A is a PWM-based 4-channel switching regulator controller featuring high-precision, high-fre...
- Table of contents:
MB3785A
-
Suppliers
DataSheet
General Description
MB3785A General Description
The MB3785A is a PWM-based 4-channel switching regulator controller featuring high-precision, high-frequency capabilities. All of the four channels of circuits allow their outputs to be set in three modes: step-down, step-up, and inverted. The third and fourth channels are suited for DC motor speed control.
The triangular-wave oscillation circuit accepts a ceramic resonator, in addition to the standard method of oscillation using an RC network.
MB3785A Maximum Ratings
(Ta = +25°C)
| Rating | Symbol | Conditions | Rating | Unit |
| Power supply voltage | VCC | - | 20 | V |
| Control input voltage | VICTL | - | 20 | V |
| Power dissipation | PD | Ta +25°C | 550* | mW |
| Operating ambient temperature |
TOP | - | 30 to 85 | °C |
| Storage temperature | Tstg | - | 55 to 125 | °C |
WARNING: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded.
Functional operation should be restricted to the conditions as detailed in the operational sections of
this data sheet. Exposure to absolute maximum rating conditions for extended periods may affect
device reliability.
MB3785A Features
• Wide range of operating power supply voltages: 4.5 V to 18 V
• Low current consumption: 6 mA [TYP] when operating10 A or less during standby
• Built-in high-precision reference voltage generator: 2.50 V±1%
• Oscillation circuit
- Capable of high-frequency oscillation: 100 kHz to 1 MHz
- Also accepts a ceramic resonator.
• Wide input range of error amplifier: 0.2 V to VCC1.8 V
• Built-in timer/latch-actuated short-circuiting detection circuit
• Low current consumption: 6 mA [TYP] when operating10 A or less during standby
• Built-in high-precision reference voltage generator: 2.50 V±1%
• Oscillation circuit
- Capable of high-frequency oscillation: 100 kHz to 1 MHz
- Also accepts a ceramic resonator.
• Wide input range of error amplifier: 0.2 V to VCC1.8 V
• Built-in timer/latch-actuated short-circuiting detection circuit

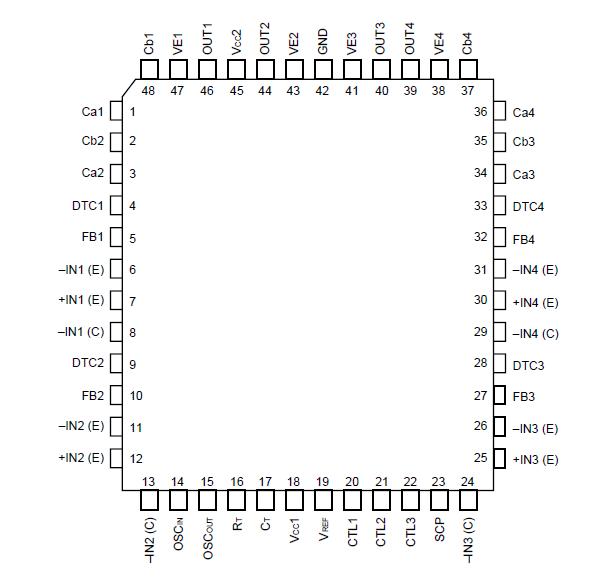

MB3785A Connection Diagram
MB3785A
PDF/DataSheet Download
- Datasheet: MB3785A
- File Size: 300915 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
- ·MB30
- ETC [ETC]
- Micro Power Resistors
- 119405 KB
- ·MB3216
- ETC [ETC]
- MB3216 SHAPES AND DIMENSIONS
- 366507 KB
- ·MB3216-102
- ETC [ETC]
- MB3216 SHAPES AND DIMENSIONS
- 366507 KB
- ·MB3216-121
- ETC [ETC]
- MB3216 SHAPES AND DIMENSIONS
- 366507 KB
- ·MB3216-151
- ETC [ETC]
- MB3216 SHAPES AND DIMENSIONS
- 366507 KB
- ·MB3216-152
- ETC [ETC]
- MB3216 SHAPES AND DIMENSIONS
- 366507 KB
- ·MB3216-202
- ETC [ETC]
- MB3216 SHAPES AND DIMENSIONS
- 366507 KB
- ·MB3216-301
- ETC [ETC]
- MB3216 SHAPES AND DIMENSIONS
- 366507 KB
MB3785A Relative Products
MB3782
The FUJITSU MB3782 is a PWM-type switching regulator controller, designed with open-collector output for connection to external drive transistors and coils, providing a selection of three types of output voltage: stepup, step-down or inverting (inverting out...
MB3778
The MB3778 is a dual switching regulator control IC. It has a two-channel basic circuit that controls PWM system aswitching regulator power. Complete synchronization is achieved by using the same oscillator output wave.This MB3778 can accept any two of the f...
MB3776A
MB3776A is a PWM system switching regulator controller. Because of its low operating supply voltage and powerdown,the MB3776A is ideal for use in DC/DC converters for battery-powered portable equipment.

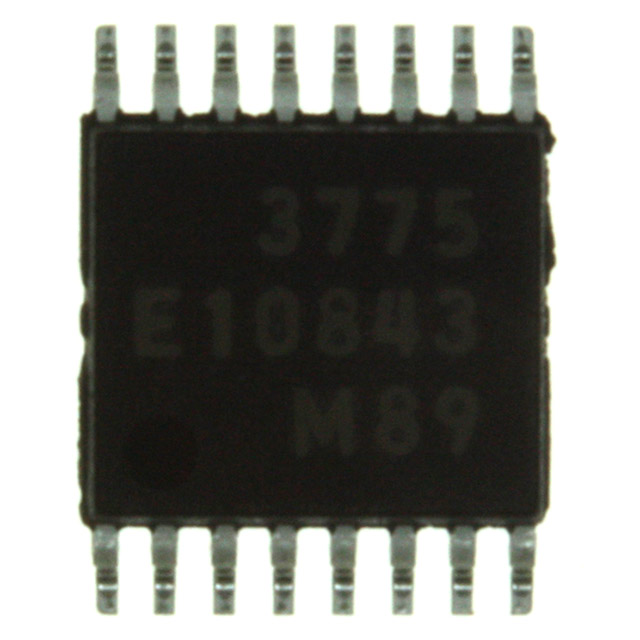

MB3775PFV-G-BNDE1
