Part Number: MB3793-30A
Description: The MB3793 is an integrated circuit to monitor power voltage; it incorporates a watchdog timer.
- Table of contents:
MB3793-30A
-
Suppliers
DataSheet
General Description
MB3793-30A General Description
The MB3793 is an integrated circuit to monitor power voltage; it incorporates a watchdog timer.
A reset signal is output when the power is cut or falls abruptly. When the power recovers normally after resetting, a power-on reset signal is output to microprocessor units (MPUs). An internal watchdog timer with two inputs for system operation diagnosis can provide a fall-safe function for various applicaiton systems.
There is also a mask option that can detect voltages of 4.9 V to 2.4 V in 0.1-V steps.
MB3793-30A Maximum Ratings
| Parameter |
Symbol |
Conditions |
Rating |
Units | ||
|
Min |
Max | |||||
| Power supply voltage* |
VCC |
-- |
-0.3 |
+7 |
V | |
| Input voltage* | CK1 |
VCK1 |
-- |
-0.3 |
VCC + 0.3 ( +7) |
V |
| CK2 |
VCK2 |
-- | ||||
| INH |
IINH |
-- | ||||
| Reset output voltage* |
RESET |
VOL VOH |
-- |
-0.3 |
VCC + 0.3 ( +7) |
V |
| Reset output current |
IOL IOH |
-- |
-10 |
+10 |
mA | |
| Power dissipation |
PD |
Ta +85 °C |
-- |
200 |
mW | |
| Storage temperature |
Tstg |
-- |
-55 |
+125 |
°C | |
MB3793-30A Features
• Precise detection of power voltage fall: ± 2.5%
• Detection voltage with hysteresis
• Low power dispersion: ICC = 31 mA (reference)
• Internal dual-input watchdog timer
• Watchdog-timer halt function (by inhibition pin)
• Independently-set wacthdog and reset times
• Detection voltage with hysteresis
• Low power dispersion: ICC = 31 mA (reference)
• Internal dual-input watchdog timer
• Watchdog-timer halt function (by inhibition pin)
• Independently-set wacthdog and reset times

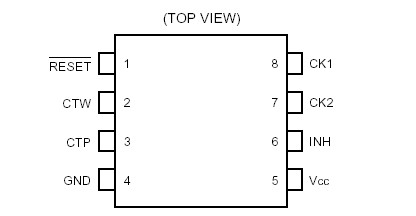

MB3793-30A Connection Diagram
MB3793-30APF
PDF/DataSheet Download
- Datasheet: MB3793-30APF
- File Size: 312030 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
- ·MB30
- ETC [ETC]
- Micro Power Resistors
- 119405 KB
- ·MB3216
- ETC [ETC]
- MB3216 SHAPES AND DIMENSIONS
- 366507 KB
- ·MB3216-102
- ETC [ETC]
- MB3216 SHAPES AND DIMENSIONS
- 366507 KB
- ·MB3216-121
- ETC [ETC]
- MB3216 SHAPES AND DIMENSIONS
- 366507 KB
- ·MB3216-151
- ETC [ETC]
- MB3216 SHAPES AND DIMENSIONS
- 366507 KB
- ·MB3216-152
- ETC [ETC]
- MB3216 SHAPES AND DIMENSIONS
- 366507 KB
- ·MB3216-202
- ETC [ETC]
- MB3216 SHAPES AND DIMENSIONS
- 366507 KB
- ·MB3216-301
- ETC [ETC]
- MB3216 SHAPES AND DIMENSIONS
- 366507 KB
MB3793-30A Relative Products
MB3793-30
The MB3793-30 is an integrated circuit to monitor power voltage; it incorporates a watchdog timer.A reset signal of MB3793-30 is output when the power is cut or falls abruptly. When the power recovers normally after resetting, a power-on reset signal is outp...
MB3793-27APNF-G-JN-ER6E1
IC PWR VOLT MON 27A WD 8SOP
MB3793-27APFV-6E1#
IC PWR VOLT MON 27A WD 8SSOP
MB3793-27A
The MB3793-27A is an integrated circuit to monitor power voltage; it incorporates a watchdog timer.MB3793-27A is output when the power is cut or falls abruptly. When the power recovers normally after resetting, a power-on reset signal is output to microproce...
MB3790
The MB3790 is designed to control power supplies to SRAM, logic IC, or other circuit devices and protects them against momentary power failures by using backup batteries. In addition to its function to supply the power to these devices,MB3790 has a function ...
MB3789
The MB3789 is a PWM (pulse width modulation) switching regulator controller supporting an external sync signal.The MB3789 incorporates two error amplifiers which can be used respectively for voltage control and current control, allowing the IC to serve as a ...
