General Description
MB40968V General Description
The Fujitsu MB40968/40968V is a 2-channel 8-bit high speed digital to analog converter for video frequency band fabricated by Fujitsu Advanced Bipolar Technology. This is suitable for YC signal processing of digital VCR.
MB40968V Maximum Ratings
| Rating | Symbol | Value | Unit |
| Power supply voltage | VCCA, VCCD | 0.5 to +7.0 | V |
| Supply voltage difference | VCCD VCCA | 1.5 | V |
| Digital input voltage | VID | 0.5 to +7.0 | V |
| Storage temperature | TSTG | 55 to +125 | °C |
operation should be restricted to the conditions as detailed in the operational sections of this
data sheet. Exposure to absolute maximum rating conditions for extended periods may affect device
reliability.
MB40968V Features
• Resolution: 8-bits
• Linearity error: ±0.2% (max.)
• Maximum conversion rate: 30 MHz (Min.)
• Analog output voltage range: 3 to 5V
• Reference voltage output:
MB40968: Resistance-type potential divider output (3/5 ´ VCCA)
MB40968V: Band gap reference output (VCCA 2 [V])
• Digital input voltage: TTL level
• Single power supply voltage: +5.0 [V]
• Power dissipation: 270 [mW] (typ)
• Linearity error: ±0.2% (max.)
• Maximum conversion rate: 30 MHz (Min.)
• Analog output voltage range: 3 to 5V
• Reference voltage output:
MB40968: Resistance-type potential divider output (3/5 ´ VCCA)
MB40968V: Band gap reference output (VCCA 2 [V])
• Digital input voltage: TTL level
• Single power supply voltage: +5.0 [V]
• Power dissipation: 270 [mW] (typ)

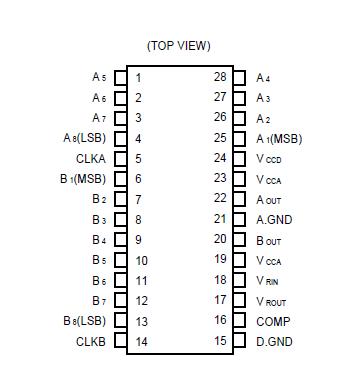

MB40968V Connection Diagram
MB40968V
