Five Points

Part Number: MB40988





Package Cooled: QFP

D/C: 91+

Description: The MB40988 is an 8-bit resolution ultra high-speed digital-to-analog converter, designed for video pr...


Urgent Purchase

MB40988 General Description


The MB40988 is an 8-bit resolution ultra high-speed digital-to-analog converter, designed for video processing applications.

The MB40988 has 8-bit resolution 3 channel D/A converters. Digital signals are input to the 8-bit digital input ports, and the input digital data are converted to the analog signals in minimum 80 Mega sample per seconds (MSPS).

The analog output voltage is provided in a range of DC +3V to +5V (2Vp-p level) .

The MB40988 is fabricated by the Fujitsu's advanced bipolar process and housed in a 48-pin plastic QFP.

The MB40988 is designed for video signal processing applications, and it is suitable for TVS and VCRS.

MB40988 Maximum Ratings


                                                                                                 (A. GND = D. GND = 0V)
Parameter Symbol Rating Unit
Power supply voltage VCCA, VCCD 0.5 to +7.0 V
Power supply voltage difference VCCD VCCA 1.5 V
Analog reference voltage VRIN 0.5 to VCCA +7.0 V
Digital input voltage VID 0.5 to +7.0 V
Storage temperature Tstg 55 to +125 °C
Note: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional
         operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
         Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

MB40988 Features

• 8-bit x 3 channels D/A converters
• Max. 80 MHz input clock frequency providing 80 MSPS data conversion rate
• Linearity error : Max. +/-0.2%
• Analog input voltage range : 3V to 5V (2Vp-p level)
• Digital input voltage level : TTL level
• On-chip reference voltage outputs :
   Output by resistor divided (0.6 x VCCA)
   Output by band gap reference (VCCA - 2[V] )
• Low power consumption : Typical 440mW at 2Vp-p analog output voltage
Typical 350mW at 1Vp-p analog output voltage
• Single +5V power supply
• Operating temperature range : -20°C to +70°C
• Fujitsu's advanced bipolar process
• Package : 48-pin plastic QFP (Suffix : -PF)

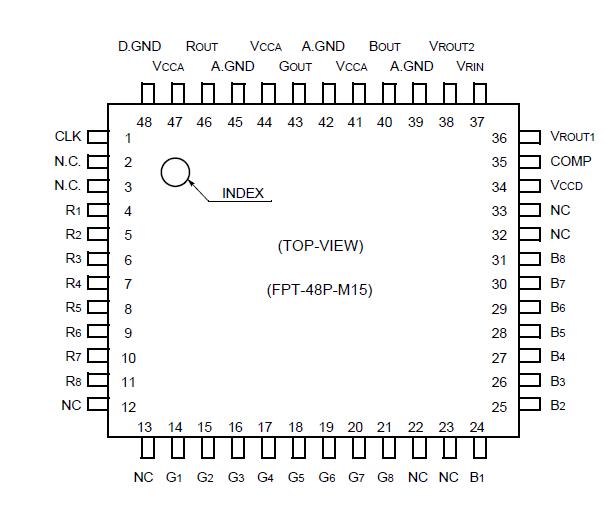

MB40988 Connection Diagram

MB40988 Connection Diagram
