Part Number: MB40C348
MFG: F
Package Cooled: SQFP120
D/C: 0005/0008
Description: MB40C348 is a high-speed 3ch A/D converter using a fast CMOS technology.
- Table of contents:
MB40C348
-
Suppliers
DataSheet
General Description
MB40C348 General Description
MB40C348 is a high-speed 3ch A/D converter using a fast CMOS technology.
MB40C348 Maximum Ratings
| Parameter | Symbol | Rating | Unit | |
| Min. | Max. | |||
| Power supply voltage | AVDD, DVDD, PVDD | 0.3 | +4.0 | V |
| VESD | 0.3 | +7.0 | V | |
| Input/output voltage | RVIN, GVIN, BVIN, RADIN, GADIN, BADIN, RVCLP, GVCLP, BVCLP, VRT, VRTM, VREFT, VRB, VRBM, VREFB, VR1, VR2, VR3 VREF, RREF |
0.3 | AVDD+0.3*1 | V |
| RDA0 to RDA7, RDB0 to RDB7, GDA0 to GDA7, GDB0 to GDB7, BDA0 to BDA7, BDB0 to BDB7, DSYNC, DSYNCB, OF, COUT, CLK, CLKB, ADCLKA, ADCLKB |
-0.3 | DVDD+0.3*1 | V | |
| LPF | -0.3 | PVDD+0.3*1 | V | |
| DSEL, CK, DATA, CS, EXPCLKB, EXPCLK, PCLP, CE, EXCLK, HHOLD, HSYNC |
-0.3 | VESD+0.3*2 | V | |
| Storage temperature | TSTG | -55 | +125 | °C |
*2 : Do not exceed +7.0 V.
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB40C348 Features
• Resolution : 8 bit
• No. of AD channels : 3 ch
• Linearity error : ±0.40% (typical)
• Maximum conversion rate : 100 MSPS (minimum)
• Power supply voltage : 3.3 V (typical: internal circuit)
• Digital input voltage range : TTL level
• Digital output voltage range : 3.3 V CMOS level
• Amp. input voltage range : 0.7 VP-P (typical)
• Amp. gain : 1.9 double fixed
• Power dissipation : 880 mW (typical)
• Additional features : PLL circuit
Video Amp. circuit (1.9 double fixed gain)
CLAMP circuit
VRT Amp. circuit (RGB 3 ch common)
VRB Amp. circuit (RGB 3 ch common)
Overflow output
High impedance output, power down function
• Package : LQFP120 (16 mm×16mm, lead pitch : 0.5 mm)
• No. of AD channels : 3 ch
• Linearity error : ±0.40% (typical)
• Maximum conversion rate : 100 MSPS (minimum)
• Power supply voltage : 3.3 V (typical: internal circuit)
• Digital input voltage range : TTL level
• Digital output voltage range : 3.3 V CMOS level
• Amp. input voltage range : 0.7 VP-P (typical)
• Amp. gain : 1.9 double fixed
• Power dissipation : 880 mW (typical)
• Additional features : PLL circuit
Video Amp. circuit (1.9 double fixed gain)
CLAMP circuit
VRT Amp. circuit (RGB 3 ch common)
VRB Amp. circuit (RGB 3 ch common)
Overflow output
High impedance output, power down function
• Package : LQFP120 (16 mm×16mm, lead pitch : 0.5 mm)

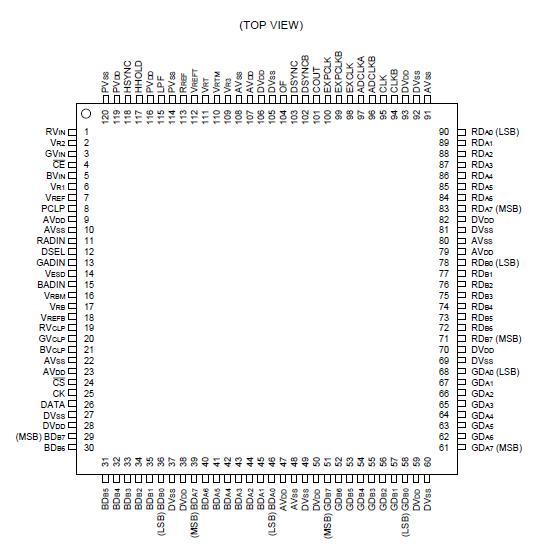

MB40C348 Connection Diagram
MB40C348
PDF/DataSheet Download
- Datasheet: MB40C348
- File Size: 258707 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
