Part Number: MB40D001
MFG: FUJ
D/C: 04+
Description: The MB40D001 is an 8-bit D/A converter with 12 built-in channels. The 12 sets of analog outputs have b...
- Table of contents:
MB40D001
-
Suppliers
DataSheet
General Description
MB40D001 General Description
The MB40D001 is an 8-bit D/A converter with 12 built-in channels. The 12 sets of analog outputs have built-in OP amps to enable use with large current drive applications.
CS (chip select) data input/output format is used to enable connection to a serial bus. A built-in 12-bit I/O expander provides serial <=> parallel conversion (8 of the 12 bits are also used with analog output).
The MB40D001 can be adapted for microcontroller port expansion, or replacement of electronic volume control or semi-fixed calibration resistance.
Also, the MB40D001 is function- and pin-compatible with the MB88146A, for easy replacement when reducing sysytem operating voltage.
MB40D001 Maximum Ratings
| Parameter | Symbol | Conditions | Rating | Unit | |
| Min. | Max. | ||||
| Power supply voltage | VCCA | Based on GND (Ta = +25°C) |
0.3 | +7.0 | V |
| VCCD | 0.3 | +7.0 | V | ||
| VDD | 0.3 | VCCA* | V | ||
| Input voltage 1 | Vin1 | SI, CLK, CS, | 0.3 | VCCD + 0.3 | V |
| Output voltage 1 | Vout1 | SO, D0 to D3 | 0.3 | VCCD + 0.3 | V |
| Input voltage 2 | Vin2 | D4 to D11 | 0.3 | VCCA + 0.3 | V |
| Output voltage 2 | Vout2 | 0.3 | VCCA + 0.3 | V | |
| Power consumption | PD | - | - | 250 | mW |
| Operating temperature | Ta | - | 20 | +85 | °C |
| Storage temperature | Tstg | - | 55 | +150 | °C |
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB40D001 Features
• Supply voltage 2.7 V to 3.6 V (Power consumption 0.7 mW/ch typ.)
• Compact package: SSOP-24
• R-2R type 8-bit D/A converter with 12 built-in channels
• Built-in 12-bit I/O expander (8 of 12 bits also used with analog output)
• Built-in analog amplifier (sink current max. 0.4 mA, source current max. 1.0 mA)
• Built-in power-on detector circuit (detects VccD power-on, and performs initialization)
• Separate MCU interface power supply (VccD), OP amp supply (VccA), D/A converter supply VDD
• Analog output range 0 V to VccA.
• Serial data input/output operation to maximum of 2.5 MHz (1.5 MHz in cascade operation)
• Compact package: SSOP-24
• R-2R type 8-bit D/A converter with 12 built-in channels
• Built-in 12-bit I/O expander (8 of 12 bits also used with analog output)
• Built-in analog amplifier (sink current max. 0.4 mA, source current max. 1.0 mA)
• Built-in power-on detector circuit (detects VccD power-on, and performs initialization)
• Separate MCU interface power supply (VccD), OP amp supply (VccA), D/A converter supply VDD
• Analog output range 0 V to VccA.
• Serial data input/output operation to maximum of 2.5 MHz (1.5 MHz in cascade operation)

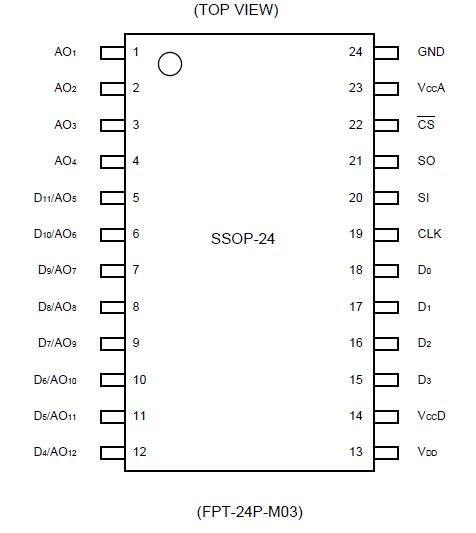

MB40D001 Connection Diagram
MB40D001
PDF/DataSheet Download
- Datasheet: MB40D001
- File Size: 219455 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
