Part Number: MB54503



MFG: FUJITSU

Package Cooled: TSSOP16



Description: The Fujitsu MB54503 is a high-power amplifier which is used for mobile telecommunication systems such as handy phones a...


Urgent Purchase

MB54503 General Description


The Fujitsu MB54503 is a high-power amplifier which is used for mobile telecommunication systems such as handy phones and car phones. This device is ideally suitable for power amplifier driver.

Using Fujitsu's advanced technology, MB54503 achieves an Icc of 26.0mA (typ.).

MB54503 Maximum Ratings

Parameters Symbol Value Unit
Supply Voltage VCC 0.5 to 7.0 V
Output Voltage VO 0.5 to VCC + 0.5 V
Output Current IO 0 to 10 mA
Storage Temperature TSTG -55 to +125 °C
Note: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional
          operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
          Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

MB54503 Features

• Supply voltage 3.6V (typ.)
• Current consumption 26mA (typ.)
• Input frequency 1.1GHz (max.)
• Gain 25dB (typ.)*1
• Output level (@Pin=8dBm) +13dBm (typ.)*1
• Input return loss 14dBm (typ.)*1
• Output return loss 6dB (typ.)*1
*1: Measured by the circuit of "measurement circuit example".
   (fin = 933MHz)
• 16-pin Plastic Shrink Small Outline Package (Suffix: -PFV)

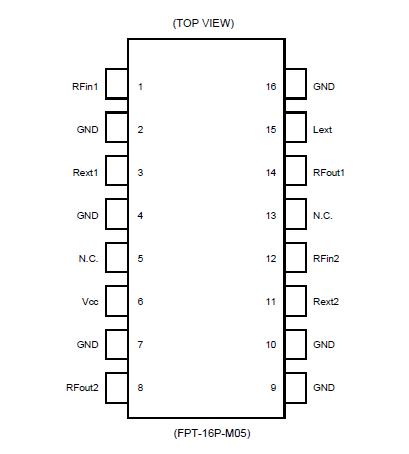

MB54503 Connection Diagram

MB54503 Connection Diagram
