General Description
MB54608L General Description
The MB54608L/B is an I/Q Modulator for direct conversion method, and is used for up to 1.0 GHz band digital cellular phones such as GSM, PDC and so on.
MB54608L consists of a frequency doubler, a Flip-flop type quadrature phase shifter, I/Q modulator and a mixer for frequency offset with a separate power supply.
Fujitsu's advanced Bipolar process has realized very low current operation(ICC = 16.5 mA @3 V). SSOP-20 and BCC-16 package are available.(MB54608L: SSOP-20, MB54608B: BCC-16)
MB54608L Maximum Ratings
| Parameter | Symbol | Rating | Unit | Unit | |
| Min. | Max. | ||||
| Power supply voltage | VCC | 0.5 | +5.0 | V | |
| Output voltage | VO | 0.5 | VCC + 0.5 (<5.0) | V | |
| Input voltage | VI | 0.5 | VCC + 0.5 (<5.0) | V | |
| Allowed voltage on the open collector pin |
VOC | VCC 0.3 (0.5) |
VCC + 0.3 (5.0) |
V | Out pin, Open is prohibited. |
| Output current | IO | 0 | +10 | mA | |
| Storage temperature | Tstg | 55 | +125 | °C | |
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB54608L Features
• Supporting GSM frequency band
Output frequency: 1.0 GHz (max.) Output power: 4 dBm(Typical, VBB = 1.0 Vp-p input)
• Low voltage operation: VCC = 2.6 V to 3.8 V
• Low current: Please refer to below table.
• Offset mixer on-chip: The separate power supply control is possible. (only MB54608L)
• Output power level switch (Mode) enables high power mode
Note:Typical values
Further increase of the output power is possible by attaching a resistor at Pcnt pin.
• Operating temperature range: Ta = 20 to +75°C
Output frequency: 1.0 GHz (max.) Output power: 4 dBm(Typical, VBB = 1.0 Vp-p input)
• Low voltage operation: VCC = 2.6 V to 3.8 V
• Low current: Please refer to below table.
• Offset mixer on-chip: The separate power supply control is possible. (only MB54608L)
• Output power level switch (Mode) enables high power mode
| Offset Mixer not used | Offset Mixer used | ||||
| Mode = Open | Mode = GND | Mode = Open | Mode = GND | ||
| Normal operation |
Icc | 16.5 mA | 19.0 mA | 22.5 mA | 25.0 mA |
| Pout(VBB=1.0 Vpp) | 4 dBm | 2 dBm | 4 dBm | 2 dBm | |
| Power down | Ips | 0.22 mA | 0.44 mA | ||
Further increase of the output power is possible by attaching a resistor at Pcnt pin.
• Operating temperature range: Ta = 20 to +75°C

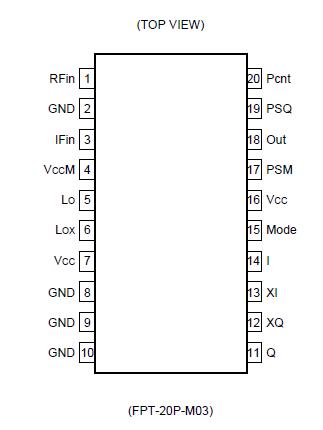

MB54608L Connection Diagram
MB54608L
