Part Number: MB81F643242B-10FN-X
Description: The Fujitsu MB81F643242B is a CMOS Synchronous Dynamic Random Access Memory (SDRAM) containing 67,108,...
- Table of contents:
MB81F643242B-10FN-X
-
Suppliers
DataSheet
General Description
MB81F643242B-10FN-X General Description
The Fujitsu MB81F643242B is a CMOS Synchronous Dynamic Random Access Memory (SDRAM) containing 67,108,864 memory cells accessible in a 32-bit format. The MB81F643242B features a fully synchronous operation referenced to a positive edge clock whereby all operations are synchronized at a clock input which enables high performance and simple user interface coexistence. The MB81F643242B SDRAM is designed to reduce the complexity of using a standard dynamic RAM (DRAM) which requires many control signal timing constraints, and may improve data bandwidth of memory as much as 5 times more than a conventional DRAM.
The MB81F643242B is ideally suited for workstations, personal computers, laser printers, high resolution graphic adapters/accelerators and other applications where an extremely large memory and bandwidth are required and where a simple interface is needed.
MB81F643242B-10FN-X Maximum Ratings
| Parameter |
Symbol |
Minimum |
Unit |
| Voltage of Vcc supply relative to Vss |
VCC,VCCQ |
0.5 to +4.6 |
V |
| Voltage at Any Pin Relative to Vss |
VIN,VOUT |
0.5 to +4.6 |
V |
| Short Circuit Output Current |
IOUT |
±50 |
mA |
| Power Dissipation |
PD |
1.3 |
W |
| Operating Temperature |
TSTG |
-55 to125 |
MB81F643242B-10FN-X Features
• Single +3.3 V Supply ±0.3 V tolerance
• LVTTL compatible I/O interface
• 4 K refresh cycles every 16 ms
• Four bank operation
• Burst read/write operation and burst read/single write operation capability
• Programmable burst type, burst length, and CAS latency
• Auto-refresh (every 3.9 s)
• CKE power down mode
• Output Enable and Input Data Mask
• LVTTL compatible I/O interface
• 4 K refresh cycles every 16 ms
• Four bank operation
• Burst read/write operation and burst read/single write operation capability
• Programmable burst type, burst length, and CAS latency
• Auto-refresh (every 3.9 s)
• CKE power down mode
• Output Enable and Input Data Mask

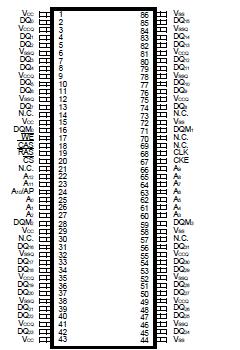

MB81F643242B-10FN-X Connection Diagram
MB81F643242B-10FN-X
