Purchase MB89535A, In-stock MB89535A From SeekIC.
Part Number: MB89535A
Description: The MB89530A series is a one-chip microcontroller featuring the F2MC-8L core supporting low-voltage an...
- Table of contents:
MB89535A
-
Suppliers
DataSheet
General Description
MB89535A General Description
The MB89530A series is a one-chip microcontroller featuring the F2MC-8L core supporting low-voltage and highspeed operation. Built-in peripheral functions include timers, serial interface, A/D converter, and external interrupt. This product is an ideal general-purpose one-chip microcontroller for a wide variety of applications from household to industrial equipment, as well as use in portable devices.
MB89535A Features
• Wide range of package options
· Two types of QFP packages (1 mm pitch, 0.65 mm pitch)
· LQFP package (0.5 mm pitch)
· SH-DIP package
• Low voltage, high-speed operating capability
· Minimum instruction execution time 0.32 ms (at base oscillator 12.5 MHz)
• F2MC-8L CPU Core
· Instruction set optimized for controller operation
· Multiplication/division instructions
· 16-bit calculation
· Branching instructions with bit testing
· Bit operation instructions, etc.
• Five timer systems
· 8-bit PWM timer with 2 channels (usable as either interval timer of PWM timer)
· Pulse width count timer (supports continuous measurement or remote control receiving applications)
· 16-bit timer counter
· 21-bit time base timer
· Watch prescaler (17-bit)
• UART
· Synchronous or asynchronous operation, switchable
• 2 serial interfaces (Serial I/O)
· Selection of transfer direction (specify MSB first or LSB first) for communication with a variety of devices
• 10-bit A/D converter (8 channels)
· External clock input for startup support
· Time base timer output for startup support (except MB89F538)
• Pulse generators (PPG) with 2-program capability
· 6-bit PPG with selection of pulse width and pulse period
· 12-bit PPG (2 channels) with selection of pulse width and pulse period
• I2C interface circuits
• External interrupt 1 (single-clock system : 4 channels, dual-clock system : 3 channels)
· 4 or 3 independent inputs, release enabled from standby mode (includes edge detection function)
• External interrupt 2 (8 channels)
· 8 independent inputs, release enabled form standby mode (includes level edge detection function)
• Standby modes (low power consumption modes)
· Stop mode (oscillator stops, virtually no power consumed)
· Sleep mode (CPU stops, power consumption reduced to one-third)
· Sub clock mode
· Watch mode
• Watchdog timer reset
• I/O ports
· Maximum ports Single-clock system : Except MB89F538 53 ports : MB89F538 52 ports Dual-clock system : Except MB89F538 51 ports : MB89F538 50 ports
· 38 general-purpose I/O ports (CMOS) (MB89F538 : 37 general-purpose I/O ports)
· 2 general-purpose I/O ports (N-ch open drain)
· 8 general-purpose output ports (N-ch open drain)
· General-purpose input ports (CMOS) : single-clock system : 5 ports, dual-clock system : 3 ports
· Two types of QFP packages (1 mm pitch, 0.65 mm pitch)
· LQFP package (0.5 mm pitch)
· SH-DIP package
• Low voltage, high-speed operating capability
· Minimum instruction execution time 0.32 ms (at base oscillator 12.5 MHz)
• F2MC-8L CPU Core
· Instruction set optimized for controller operation
· Multiplication/division instructions
· 16-bit calculation
· Branching instructions with bit testing
· Bit operation instructions, etc.
• Five timer systems
· 8-bit PWM timer with 2 channels (usable as either interval timer of PWM timer)
· Pulse width count timer (supports continuous measurement or remote control receiving applications)
· 16-bit timer counter
· 21-bit time base timer
· Watch prescaler (17-bit)
• UART
· Synchronous or asynchronous operation, switchable
• 2 serial interfaces (Serial I/O)
· Selection of transfer direction (specify MSB first or LSB first) for communication with a variety of devices
• 10-bit A/D converter (8 channels)
· External clock input for startup support
· Time base timer output for startup support (except MB89F538)
• Pulse generators (PPG) with 2-program capability
· 6-bit PPG with selection of pulse width and pulse period
· 12-bit PPG (2 channels) with selection of pulse width and pulse period
• I2C interface circuits
• External interrupt 1 (single-clock system : 4 channels, dual-clock system : 3 channels)
· 4 or 3 independent inputs, release enabled from standby mode (includes edge detection function)
• External interrupt 2 (8 channels)
· 8 independent inputs, release enabled form standby mode (includes level edge detection function)
• Standby modes (low power consumption modes)
· Stop mode (oscillator stops, virtually no power consumed)
· Sleep mode (CPU stops, power consumption reduced to one-third)
· Sub clock mode
· Watch mode
• Watchdog timer reset
• I/O ports
· Maximum ports Single-clock system : Except MB89F538 53 ports : MB89F538 52 ports Dual-clock system : Except MB89F538 51 ports : MB89F538 50 ports
· 38 general-purpose I/O ports (CMOS) (MB89F538 : 37 general-purpose I/O ports)
· 2 general-purpose I/O ports (N-ch open drain)
· 8 general-purpose output ports (N-ch open drain)
· General-purpose input ports (CMOS) : single-clock system : 5 ports, dual-clock system : 3 ports

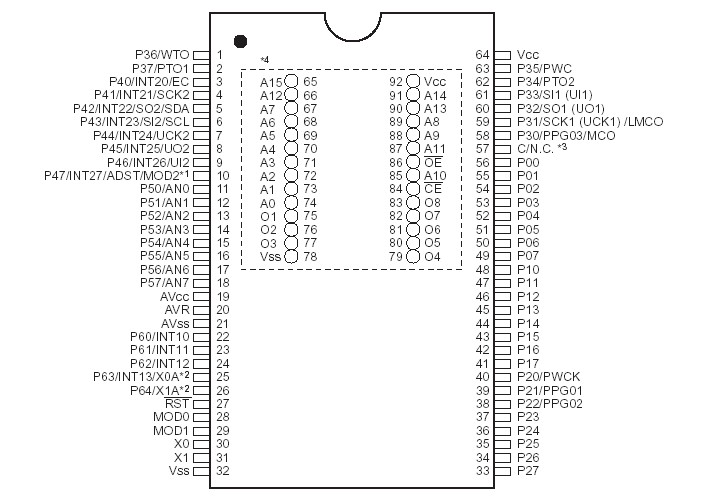

MB89535A Connection Diagram
MB89535A
PDF/DataSheet Download
- Datasheet: MB89535A
- File Size: 860957 KB
- Manufacturer: Fujitsu
- Click here to Download
