Part Number: MB89997









Description: The MB89990 series microcontrollers contain various resources such as timers, external interrupts, and remotecontrol fu...


Urgent Purchase

MB89997 General Description


The MB89990 series microcontrollers contain various resources such as timers, external interrupts, and remotecontrol functions, as well as an F2MC*-8L CPU core for low-voltage and high-speed operations. These singlechip microcontrollers are suitable for small devices such as remote controllers incorporating compact packages.

MB89997 Maximum Ratings

Parameter Symbol Value Unit Remarks
Min. Max.
Power supply voltage VCC VSS 0.3 VSS + 7.0 V
EPROM program voltage VPP VSS 0.3 VSS + 13.0 V Applicable to TEST pin of
MB89P195.
Input voltage VI VSS 0.3 VCC + 0.3 V
Output voltage VO VSS 0.3 VCC + 0.3 V
"L" level maximum output current IOL1 - 10 mA Except P33 and P34
IOL2 - 20 mA P33, P34
"L" level average output current IOLAV1 - 4 mA Except P33 and P34
Average value (operating
current ´ operation rate)
IOLAV2 - 8 mA P33 and P34
Average value (operating
current ´ operation rate)
"L" level total average output current IOLAV - 20 mA Average value (operating
current ´ operation rate)
"L" level maximum total output current IOL - 100 mA
"H" level maximum output current IOH1 - 10 mA Except P33, P34, and P37
IOH2 - 20 mA P33, P34, P37
"H" level average output current IOHAV1 - 2 mA Except P33, P34, and P37
Average value (operating
current ´ operation rate)
IOHAV2 - 4 mA Except P33, P34, and P37
Average value (operating
current ´ operation rate)
"H" level total average output
current		 IOHAV - 10 mA Average value (operating
current ´ operation rate)
"H" level total maximum output
current		 IOH - 30 mA
Power consumption PD - 200 mW
Operating temperature TA 40 +85 °C
Storage temperature Tstg 55 +150 °C

MB89997 Features

• Minimum execution time: 0.95 ms at 4.2 MHz (VCC = 2.7 V)
• F2MC-8L family CPU core
• Two timers 8/16-bit timer/counter 20-bit timebase counter

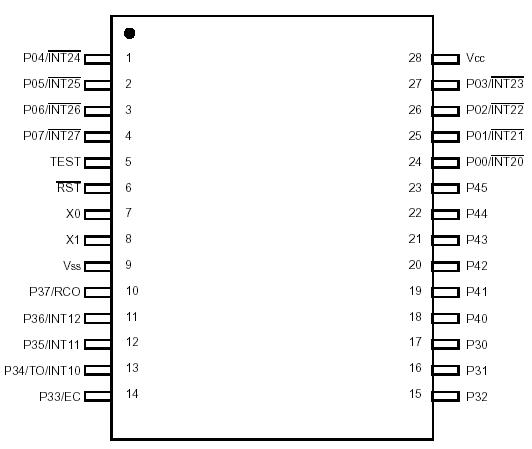

MB89997 Connection Diagram

MB89997 Connection Diagram

MB89997 datasheet

MB89997
PDF/DataSheet Download
