Description: The MB90097 is the on-screen display controller for displaying text and graphics on the TV screen. Sin...
- Table of contents:
MB90097
-
Suppliers
DataSheet
General Description
MB90097 General Description
The MB90097 is the on-screen display controller for displaying text and graphics on the TV screen. Since it has a three-channel output control function, small package, and low voltage requirement for operation, it is suitable for on-screen display on video equipment such as camera-integrated VTRs.
The MB90097 provides a display screen made up of 28 characters by 12 lines, capable of displaying 512 different characters each consisting of 12 ´ 18 dots. The display functions of the MB90097 includes a wealth of character qualifying functions such as character background shading (shadow casting) and individual character size setting, supporting 16-color display for each character. They also include the line background, screen background, and sprite character display functions, enabling the screen to be displayed in a variety of configurations. The integrated font ROM contains 512 different character patterns all of which can be set by the user.
MB90097 Maximum Ratings
(VGND = 0 V)
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
| Parameter | Symbol | Rating | Unit | Remarks | |
| Min. | Max. | ||||
| Power supply voltage | VDD | VGND 0.3 | VGND + 4.5 | V | |
| Input voltage | VIN | VGND 0.3 | VDD + 0.3 | V | |
| Output voltage | VOUT | VGND 0.3 | VDD + 0.3 | V | |
| Power consumption | Pd | - | 100 | mW | |
| Operating temperature | Ta | −40 | +85 | °C | |
| Storage temperature | Tstg | 55 | +125 | °C | |
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB90097 Features
• Character screen configuration: 28 characters *12 lines (maximum)
• Character types: 512 different characters (integrated in ROM, user-definable through the entire area)
• Font configuration: 12*18 dots (font ROM configuration)
Capable of specifying the horizontal and vertical sizes of characters to be displayed.
• One of the following three horizontal sizes (S, M, L) can be set for each character:
S size : 6 dots
M size : 9 dots
L size : 12 dots
• Either of the following two vertical sizes (HA, HB) can be set for each line.
HA : 18 dots
HB : 12 dots
• Display modes: Character trimming Enabled/Disabled (Set for each line)
Character background None/Solid-fill/Shaded background (concaved)/Shaded
background (convexed) (Set for each line)
Horizontal character merge/independent display with
shaded background (Set for each character)
Vertical line merge/independent display with shaded
background (Set for each line)
Character background extended display ON/OFF for line
spacings (Set for each line)
Line background None/Solid-fill/Shaded background (concaved)/Shaded
background (convexed) (Set for each line)
(Display extended to the left and right margins of the screen
and to the line spacing)
Character enlargement: Four types supported: Normal, Double width, Double height,
Double width*double height
(Set for each line)
Enlarged display dot interpolation function (Set for each line)
• Character screen display position control:
Horizontal display position Control in 2-dot units (movable through the entire screen)
Vertical display position Control in 2-dot units (movable through the entire screen)
Line spacing control Control in 1-dot units (Set between 0 to 7 dots for each
line; Displayed simultaneously at two areas above and
below the line.)
• Sprite character control:
Sprite character display OFF/ON
Sprite character types 256 types (character codes: 000H to 0FFH)
Sprite character trimming Enabled/Disabled
Sprite character configuration Two types: 1 character/Stack of 2 characters
Sprite character horizontal display position Control in 1-dot units (movable through the entire screen)
Sprite character vertical display position Control in 1-dot units (movable through the entire screen)
• Screen background control: Screen background color OFF/ON
Display colors Character color: 16 colors (Set for each character)
Character trimming color: 16 colors (Set for each line)
Character background color: 16 colors (Set for each character) *
Line background color: 16 colors (Set for each line)
Screen background color: 16 colors
Sprite character color: 16 colors
Sprite character trimming color: 16 colors
Shaded background frame highlight color: 16 colors
Shaded background frame shadow color: 16 colors
*: Transparent (Displaying the lower-layer color) when the character
background color (color code) = "0"
• Display signal output: Color signal output: 4 bits (Supporting 16 colors)
Display period signals: 3 channels (Output selector circuit provided)
• External interface: 16-bit serial inputs
• Chip select
• Serial clock
• Serial data
• Package : SSOP-20
• Supply voltage: 3.3 V
• Character types: 512 different characters (integrated in ROM, user-definable through the entire area)
• Font configuration: 12*18 dots (font ROM configuration)
Capable of specifying the horizontal and vertical sizes of characters to be displayed.
• One of the following three horizontal sizes (S, M, L) can be set for each character:
S size : 6 dots
M size : 9 dots
L size : 12 dots
• Either of the following two vertical sizes (HA, HB) can be set for each line.
HA : 18 dots
HB : 12 dots
• Display modes: Character trimming Enabled/Disabled (Set for each line)
Character background None/Solid-fill/Shaded background (concaved)/Shaded
background (convexed) (Set for each line)
Horizontal character merge/independent display with
shaded background (Set for each character)
Vertical line merge/independent display with shaded
background (Set for each line)
Character background extended display ON/OFF for line
spacings (Set for each line)
Line background None/Solid-fill/Shaded background (concaved)/Shaded
background (convexed) (Set for each line)
(Display extended to the left and right margins of the screen
and to the line spacing)
Character enlargement: Four types supported: Normal, Double width, Double height,
Double width*double height
(Set for each line)
Enlarged display dot interpolation function (Set for each line)
• Character screen display position control:
Horizontal display position Control in 2-dot units (movable through the entire screen)
Vertical display position Control in 2-dot units (movable through the entire screen)
Line spacing control Control in 1-dot units (Set between 0 to 7 dots for each
line; Displayed simultaneously at two areas above and
below the line.)
• Sprite character control:
Sprite character display OFF/ON
Sprite character types 256 types (character codes: 000H to 0FFH)
Sprite character trimming Enabled/Disabled
Sprite character configuration Two types: 1 character/Stack of 2 characters
Sprite character horizontal display position Control in 1-dot units (movable through the entire screen)
Sprite character vertical display position Control in 1-dot units (movable through the entire screen)
• Screen background control: Screen background color OFF/ON
Display colors Character color: 16 colors (Set for each character)
Character trimming color: 16 colors (Set for each line)
Character background color: 16 colors (Set for each character) *
Line background color: 16 colors (Set for each line)
Screen background color: 16 colors
Sprite character color: 16 colors
Sprite character trimming color: 16 colors
Shaded background frame highlight color: 16 colors
Shaded background frame shadow color: 16 colors
*: Transparent (Displaying the lower-layer color) when the character
background color (color code) = "0"
• Display signal output: Color signal output: 4 bits (Supporting 16 colors)
Display period signals: 3 channels (Output selector circuit provided)
• External interface: 16-bit serial inputs
• Chip select
• Serial clock
• Serial data
• Package : SSOP-20
• Supply voltage: 3.3 V

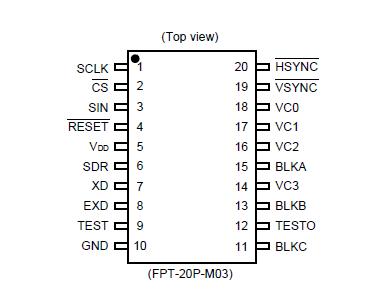

MB90097 Connection Diagram
