Part Number: MB90F823



MFG: FUJITSU



D/C: 05+

Description: The MB90820 series is a line of general-purpose, Fujitsu 16-bit microcontrollers designed for process control applicati...


Urgent Purchase

MB90F823 General Description


The MB90820 series is a line of general-purpose, Fujitsu 16-bit microcontrollers designed for process control applications which require high-speed real-time processing, such as consumer products.

While inheriting the AT architecture of the F2MC* family, the instruction set for the F2MC-16LX CPU core of the MB90820 series incorporates additional instructions for high-level languages, supports extended addressing modes, and contains enhanced multiplication and division instructions as well as a substantial collection of improved bit manipulation instructions. In addition, the MB90820 series has an on-chip 32-bit accumulator which enables processing of long-word data.

The peripheral resources integrated in the MB90820 series include : an 8/10-bit A/D converter, 8-bit D/A converters, UARTs (SCI) 0, 1, multi-functional timer (16-bit free-running timer, input capture units (ICUs) 0 to 3, output compare units (OCUs) 0 to 5, 16-bit PPG timer 0, waveform generator), 16-bit PPG timer 1, 2, PWC 0, 1, 16-bit reload timer 0, 1 and DTP/external interrupt.

F2MC stands for FUJITSU Flexible Microcontroller, a registered trademark of FUJITSU LIMITED.

MB90F823 Maximum Ratings

Parameter Symbol Rating Unit Remarks
Min Max
Power supply voltage*1 VCC VSS - 0.3 VSS + 6.0 V
AVCC VSS - 0.3 VSS + 6.0 V VCC = AVCC *2
AVR VSS - 0.3 VSS + 6.0 V AVCC ³ AVR, AVR ³ AVss
Input voltage*1 VI VSS - 0.3 VSS + 6.0 V *3
Output voltage*1 VO VSS - 0.3 VSS + 6.0 V *3
Maximum clamp current ICLAMP - 2.0 +2.0 mA *5
Total maximum clamp current |ICLAMP| - 20 mA *5
"L" level maximum output
current		 IOL - 15 mA *4
"L" level average output current IOLAV1
 - 4 mA Except for P00 to P07, P82 to P87
"L" level total maximum output
current		 IOLAV2 - 12 mA P00 to P07, P82 to P87
"L" level total average
output current		 IOL - 100 mA
"H" level maximum output
current		 IOLAV - 50 mA
"H" level average output current IOH - -15 mA
"H" level total maximum output
current		 IOHAV - -4 mA
"H" level total average
output current		 IOH - -100 mA
Power consumption IOHAV - -50 mA
Operating temperature PD - 430 mA
  TA -40 +85
Operating temperature Tstg -55 +150

MB90F823 Features

• Minimum execution time of instruction : 42 ns / 4 MHz oscillation (uses PLL clock multiplication) maximum multiplier = 6
• Maximum memory space 16M bytes Linear/bank access

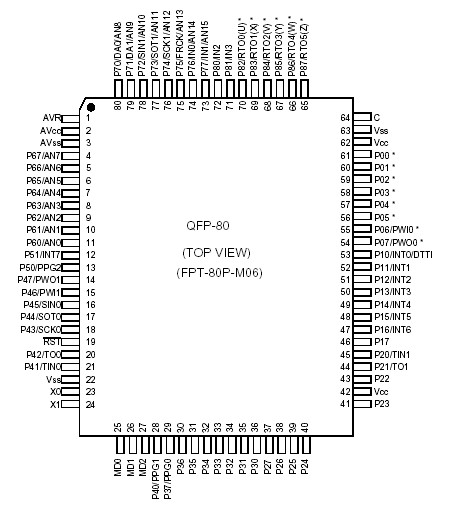

MB90F823 Connection Diagram

MB90F823 Connection Diagram
