Product Details

Description

Features:

FR20CPU
• 32-bit RISC, load/store architecture, 5-stage pipeline
• Operating clock frequency: 25 ×16
• 16-bit fixed length instructions (basic instructions), 1 instruction/1 cycle
• Memory to memory transfer, bit processing, barrel shifter processing: Optimized for embedded applications
• Function entrance/exit instructions, multiple load/store instructions of register contents, instruction systems supporting high level languages
• Register interlock functions, efficient assembly language coding
• Branch instructions with delay slots: Reduced overhead time in branch executions
• Internal multiplier/Supported at instruction level
Signed 32-bit multiplication: 5 cycles
Signed 16-bit multiplication: 3 cycles
• Interrupt (push PC and PS): 6 cycles, 16 priority levels

Pinout

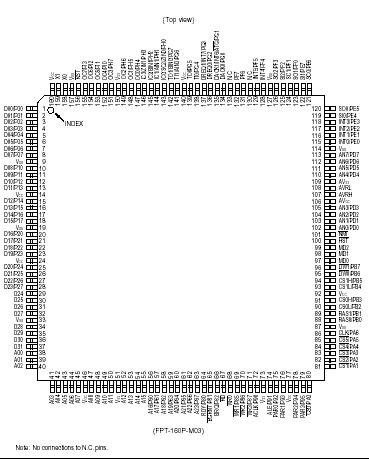

Connection Diagram

Description

The MB91103 is a standard single-chip microcontroller constructed around the 32-bit RISC CPU (FR20 Series) core with abundant I/O resources and bus control functions optimized for high-performance/high-speed CPU processing for embedded controller applications. To support the vast memory space accessed by the 32-bit CPU, the MB91103 normally operates in the external bus access mode and executes instructions on the internal 1 KB cache memory for enhanced performance.

The MB91103 is optimized for applications requiring high-performance CPU processing such as navigation systems, high-performance FAXs and printer controllers.
