General Description
MBC13900 Maximum Ratings
| Ratings | Symbol | Value | Unit |
| Collector-Emitter Voltage | VCEO | 6.5 | Vdc |
| Collector-Base Voltage | VCBO | 8.0 | Vdc |
| Emitter-Base Voltage | VEBO | 3.0 | Vdc |
| Power Dissipation @ TC = 75 C Derate Linearity above TC = 75 C at |
PD(max) | 0.188 2.5 |
W mW/ C |
| Collector Current-Continuous | IC | 20 | mA |
| Maximum Junction Temperature | TJ(max) | 150 | C |
| Storage Temperature | Tstg | -55 to 150 | C |
Functional operation should be restricted to the limits in the Electrical Characteristics
or Recommended Operating Conditions tables.
2. ESD (electrostatic discharge) immunity meets Human Body Model (HBM) 400 V and
Machine Model (MM) 50 V. Additional ESD data available upon request.
MBC13900 Typical Application
A flexible applications board topology has been developed to demonstrate the performance of the MBC13900 at 900 and 1900 MHz. The designs are a compromise of the competing performance requirements of gain, noise figure, input third-order intercept point (IIP3) and return losses. PCB, samples and assembly information are available from Motorola under part number KITMBC13900/D.

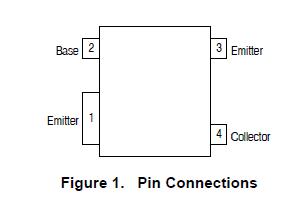

MBC13900 Connection Diagram
MBC13900
