General Description
MBM29LV001TC--70 General Description
The MBM29LV001TC/BC have two control functions which must be satisfied in order to obtain data at the outputs. CE is the power control and should be used for a device selection. OE is the output control and should be used to gate data to the output pins if a device is selected.
Address access time (tAcc) is equal to the delay from stable addresses to valid output data. The chip enable access time (tCE) is the delay from stable addresses and stable CE to valid data at the output pins. The output enable access time is the delay from the falling edge of OE to valid data at the output pins. (Assuming the addresses have been stable for at least tAcc-tOE time.) When reading out a data without changing addresses after power-up, it is necessary to input hardware reset or change CE pin from "H" or "L"
MBM29LV001TC--70 Maximum Ratings
Storage Temperature ..........................................................................................55°C to +125°C
Ambient Temperature with Power Applied .............................................................40°C to +85°C
Voltage with respect to Ground All pins except A9, OE and RESET (Note 1) .......0.5 V to VCC+0.5 V
VCC (Note 1) .............................................................................................................0.5 V to +5.5 V
A9, OE, and RESET (Note 2) ....................................................................................0.5 V to +13.0 V
Notes: 1. Minimum DC voltage on input or I/O pins are 0.5 V. During voltage transitions, inputs may negative overshoot VSS to 2.0 V for periods of up to 20 ns. Maximum DC voltage on output and I/O pins are Vcc +0.5 V. During voltage transitions, outputs may positive overshoot to VCC +2.0 V for periods of up to 20 ns.
2. Minimum DC input voltage on A9, OE and RESET pins are 0.5 V. During voltage transitions, A9, OE and RESET pins may negative overshoot VSS to 2.0 V for periods of up to 20 ns. Maximum DC input voltage on A9, OE and RESET pins are +13.0 V which may positive overshoot to 14.0 V for periods of up to 20 ns. Voltage difference between input voltage and supply voltage (VIN Vcc) do not exceed 9 V.
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current, temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MBM29LV001TC--70 Features
• Single 3.0 V read, program, and erase
Minimizes system level power requirements
• Compatible with JEDEC-standard commands
Uses same software commands as E2PROMs
• Compatible with JEDEC-standard world-wide pinouts
32-pin TSOP(I) (Package suffix: PFTN Normal Bend Type, PFTR Reversed Bend Type)
32-pin PLCC (Package suffix: PD)
• Minimum 100,000 program/erase cycles
• High performance
55 ns maximum access time
• Sector erase architecture
One 8K byte, two 4K bytes, and seven 16K bytes
Any combination of sectors can be concurrently erased. Also supports full chip erase
• Boot Code Sector Architecture
T = Top sector
B = Bottom sector
• Embedded EraseTM Algorithms
Automatically pre-programs and erases the chip or any sector
• Embedded ProgramTM Algorithms
Automatically writes and verifies data at specified address
•Data Polling and Toggle Bit feature for detection of program or erase cycle completion
• Hardware RESET pin
Resets internal state machine to the read mode
• Automatic sleep mode
When addresses remain stable, automatically switch themselves to low power mode
• Low Vcc write inhibit 2.5 V
• Erase Suspend/Resume
Suspends the erase operation to allow a read data in another sector within the same device
• Sector protection
Hardware method disables any combination of sectors from program or erase operations
• Sector Protection Set function by Extended sector protection command
• Temporary sector unprotection
Temporary sector unprotection via the RESET pin
Minimizes system level power requirements
• Compatible with JEDEC-standard commands
Uses same software commands as E2PROMs
• Compatible with JEDEC-standard world-wide pinouts
32-pin TSOP(I) (Package suffix: PFTN Normal Bend Type, PFTR Reversed Bend Type)
32-pin PLCC (Package suffix: PD)
• Minimum 100,000 program/erase cycles
• High performance
55 ns maximum access time
• Sector erase architecture
One 8K byte, two 4K bytes, and seven 16K bytes
Any combination of sectors can be concurrently erased. Also supports full chip erase
• Boot Code Sector Architecture
T = Top sector
B = Bottom sector
• Embedded EraseTM Algorithms
Automatically pre-programs and erases the chip or any sector
• Embedded ProgramTM Algorithms
Automatically writes and verifies data at specified address
•Data Polling and Toggle Bit feature for detection of program or erase cycle completion
• Hardware RESET pin
Resets internal state machine to the read mode
• Automatic sleep mode
When addresses remain stable, automatically switch themselves to low power mode
• Low Vcc write inhibit 2.5 V
• Erase Suspend/Resume
Suspends the erase operation to allow a read data in another sector within the same device
• Sector protection
Hardware method disables any combination of sectors from program or erase operations
• Sector Protection Set function by Extended sector protection command
• Temporary sector unprotection
Temporary sector unprotection via the RESET pin

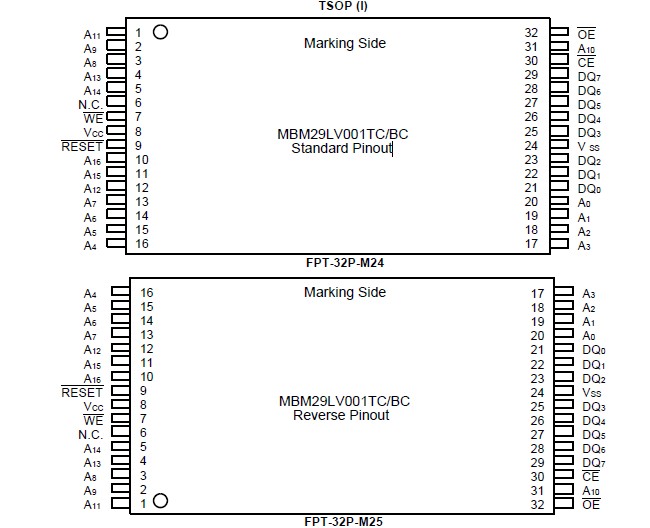

MBM29LV001TC--70 Connection Diagram
