Purchase MBT3904DW1T3G, In-stock MBT3904DW1T3G From SeekIC.

MFG:ON Semiconductor  Category:Discrete Semiconductor Products

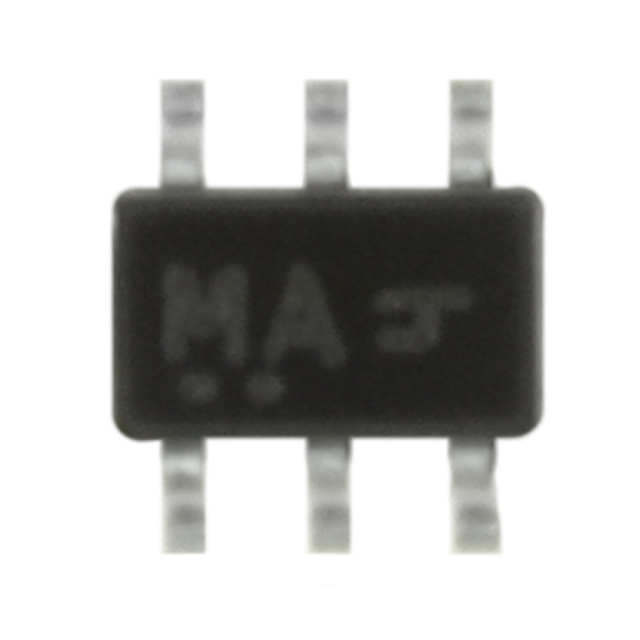

MBT3904DW1T3G

MBT Series Datasheet download

Five Points

Part Number: MBT3904DW1T3G

Category: Discrete Semiconductor Products

MFG: ON Semiconductor





Descriptions: TRANS GP DUAL 200MA 40V SOT-363

Price Break

20000

Unit Price

.03378

Extended Price

675.60

(All prices are in USD) Prices for reference only
Urgent Purchase

MBT3904DW1T3G General Description

TRANS GP DUAL 200MA 40V SOT-363

MBT3904DW1T3G Parameters

Technical/Catalog InformationMBT3904DW1T3G
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
Transistor Type2 NPN (Dual)
Voltage - Collector Emitter Breakdown (Max)40V
Current - Collector (Ic) (Max)200mA
Power - Max150mW
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 10mA, 1V
Vce Saturation (Max) @ Ib, Ic300mV @ 5mA, 50mA
Frequency - Transition300MHz
Current - Collector Cutoff (Max)-
Mounting TypeSurface Mount
Package / CaseSC-70-6, SC-88, SOT-323-6, SOT-363
PackagingTape & Reel (TR)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MBT3904DW1T3G
MBT3904DW1T3G
