Part Number: MC-4532CD647XFA









Description: The MC-4532CD647XFA is 33,554,432 words by 64 bits synchronous dynamic RAM module on which 16 pieces o...


Urgent Purchase

MC-4532CD647XFA General Description


The MC-4532CD647XFA is 33,554,432 words by 64 bits synchronous dynamic RAM module on which 16 pieces of 128M SDRAM: PD45128841 are assembled.

This module provides high density and large quantities of memory in a small space without utilizing the surfacemounting technology on the printed circuit board.

Decoupling capacitors are mounted on power supply line for noise reduction.

MC-4532CD647XFA Maximum Ratings

Parameter Symbol Condition Rating Unit
Voltage on power supply pin relative to GND VCC 0.5 to +4.6 V
Voltage on input pin relative to GND VT 0.5 to +4.6 V
Short circuit output current IO 50 mA
Power dissipation PD 16 W
Operating ambient temperature TA 0 to +70 °C
Storage temperature Tstg 55 to +125 °C
Caution Exposing the device to stress above those listed in Absolute Maximum Ratings could cause
             permanent damage. The device is not meant to be operated under conditions outside the limits
             described in the operational section of this specification. Exposure to Absolute Maximum Rating
             conditions for extended periods may affect device reliability.

MC-4532CD647XFA Features

• 33,554,432 words by 64 bits organization
• Clock frequency and access time from CLK.
Part number /CAS latency Clock frequency (MAX.) Access time from CLK (MAX.)
MC-4532CD647XFA-A75 CL = 3 133MHz 5.4 ns
CL = 2 100MHz 6.0ns
• Fully Synchronous Dynamic RAM, with all signals referenced to a positive clock edge
• Pulsed interface
• Possible to assert random column address in every cycle
• Quad internal banks controlled by BA0 and BA1 (Bank Select)
• Programmable burst-length (1, 2, 4, 8 and full page)
• Programmable wrap sequence (Sequential / Interleave)
• Programmable /CAS latency (2, 3)
• Automatic precharge and controlled precharge
• CBR (Auto) refresh and self refresh
• All DQs have 10 ±10 % of series resistor
• Single 3.3V ± 0.3 V power supply
• LVTTL compatible
• 4,096 refresh cycles/64ms
• Burst termination by Burst Stop command and Precharge command
• 168-pin dual in-line memory module (Pin pitch = 1.27 mm)
• Unbuffered type
• Serial PD

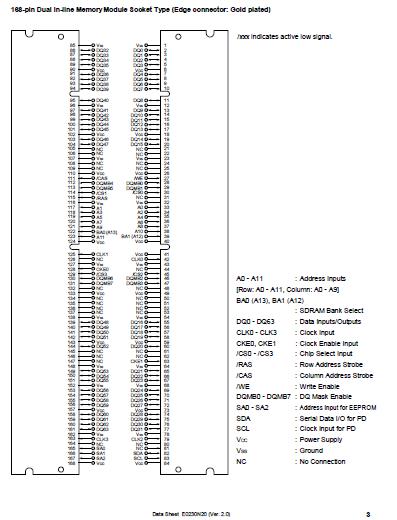

MC-4532CD647XFA Connection Diagram
