The MC10E/100E104 is a quint 2-input AND/NANDgate. The function output F is the OR of all five AND gate outputs, while F is the NOR. The Q outputs need not be terminated if only the F outputs are to be used.
MC100E104. Features
`600ps Max. Propagation Delay
`OR/NOR Function Outputs
`Extended 100E VEE Range of 4.2V to 5.46V
`75k Input Pulldown Resistors
`OR/NOR Function Outputs
`Extended 100E VEE Range of 4.2V to 5.46V
`75k Input Pulldown Resistors

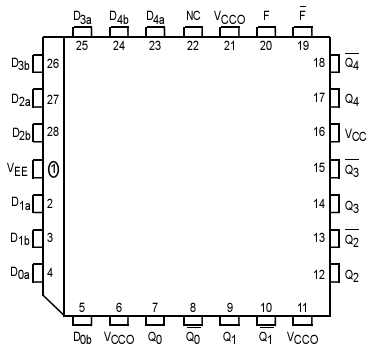

MC100E104. Connection Diagram
