Purchase MC100E116FN, In-stock MC100E116FN From SeekIC.
MFG:ON Package Cooled:PLCC
Part Number: MC100E116FN
MFG: ON
Package Cooled: PLCC
Description: TheMC10E/100E116 is a quint differentialline receivr withemitter-followeroutputs. An...
- Table of contents:
MC100E116FN
-
Suppliers
DataSheet
General Description
MC100E116FN General Description
The MC10E/100E116 is a quint differential line receivr withemitter-follower outputs. An internally generated reference supply (VBB)is available for single-ended reception.
MC100E116FN Features
•500ps Max. Propagation Delay
•VBB Supply Output
•Dedicated VCCO Pin for Each Receiver
•Extended 100E VEE Range of 4.2V to 5.46V
•75kΩ Input Pulldown Resistors
•VBB Supply Output
•Dedicated VCCO Pin for Each Receiver
•Extended 100E VEE Range of 4.2V to 5.46V
•75kΩ Input Pulldown Resistors

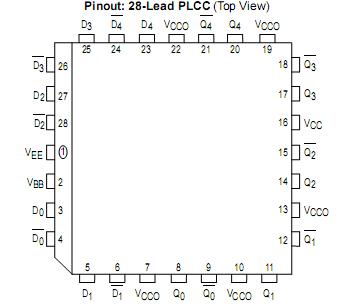

MC100E116FN Connection Diagram
MC100E116FN
PDF/DataSheet Download
- Datasheet: MC100E116FN
- File Size: 110595 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
