General Description
MC100E141 General Description
The MC10E/100E141 is an 8-bit full-function shift register. The E141 performs serial/parallel in and serial/parallel out, shifting in either direction. The eight inputs D0 D7 accept parallel input data, while DL/DR accept serial input data for left/right shifting. The Qn outputs do not need to be terminated for the shift operation to function. To minimize
noise and power, any Q output not used should be left unterminated.
MC100E141 Features
• 700MHz Min. Shift Frequency
• 8-Bit
• Full-Function, Bi-Directional
• Asynchronous Master Reset
• Pin-Compatible with E241
• Extended 100E VEE Range of 4.2V to 5.46V
• 75k Input Pulldown Resistors
The select pins, SEL0 and SEL1, select one of four modes of operation: Load, Hold, Shift Left, Shift Right, according to the Function Table.
Input data is accepted a set-up time before the positive clock edge. A HIGH on the Master Reset (MR) pin asynchronously resets all the registers to zero.
• 8-Bit
• Full-Function, Bi-Directional
• Asynchronous Master Reset
• Pin-Compatible with E241
• Extended 100E VEE Range of 4.2V to 5.46V
• 75k Input Pulldown Resistors
The select pins, SEL0 and SEL1, select one of four modes of operation: Load, Hold, Shift Left, Shift Right, according to the Function Table.
Input data is accepted a set-up time before the positive clock edge. A HIGH on the Master Reset (MR) pin asynchronously resets all the registers to zero.

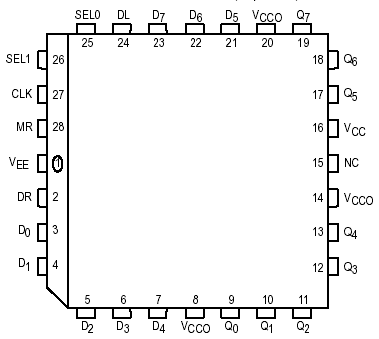

MC100E141 Connection Diagram
