MC100EP29

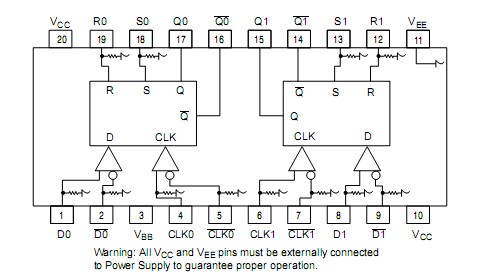

The MC10/100EP29 is a dual masterslave flipflop. The device features fully differential Data and Clock inputs as well as outputs.The MC10/100EP29 is functionally equivalent to theMC10/100EL29 Data enters the master latch when the clock is LOW and transfers to the slave upon a positive transition on the clock input. The differential inputs have special circuitry which ensures device stability under open input conditions.

When both differential inputs are left open the D input will pull down to V_EE and the D  input willbias around V_CC/2. The outputs will go to a defined state, however the state will be random based on how the flip flop powers up.Both flip flops feature asynchronous, overriding Set and Reset inputs. Note that the Set and Reset inputs cannot both be HIGH simultaneously.The V_BB pin, an internally generated voltage supply, is available to this device only. For single-ended input conditions, the unused differential input is connected to V_BB as a switching reference voltage.V_BB may also rebias AC coupled inputs. When used, decouple V_BBand V_CC via a 0.01
