Purchase MC100LVEL11, In-stock MC100LVEL11 From SeekIC.
MFG:ON
Part Number: MC100LVEL11
MFG: ON
Description: The MC100LVEL11 is a differential 1:2 fanout buffer. The device is functionally similar to the E111 de...
- Table of contents:
MC100LVEL11
-
Suppliers
DataSheet
General Description
MC100LVEL11 General Description
The MC100LVEL11 is a differential 1:2 fanout buffer. The device is functionally similar to the E111 device but with higher performance capabilities. Having within-device skews and output transition times significantly improved over the E111, the LVEL11 is ideally suited for those applications which require the ultimate in AC performance.
The differential inputs of the LVEL11 employ clamping circuitry to maintain stability under open input conditions. If the inputs are left open (pulled to VEE) the Q outputs will go LOW.
MC100LVEL11 Features
• 330ps Propagation Delay
• 5ps Skew Between Outputs
• High Bandwidth Output Transitions
• 75kW Internal Input Pulldown Resistors
• >2000V ESD Protection
• 5ps Skew Between Outputs
• High Bandwidth Output Transitions
• 75kW Internal Input Pulldown Resistors
• >2000V ESD Protection

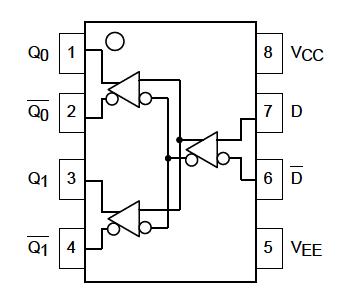

MC100LVEL11 Connection Diagram
MC100LVEL11
PDF/DataSheet Download
- Datasheet: MC100LVEL11
- File Size: 85074 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
